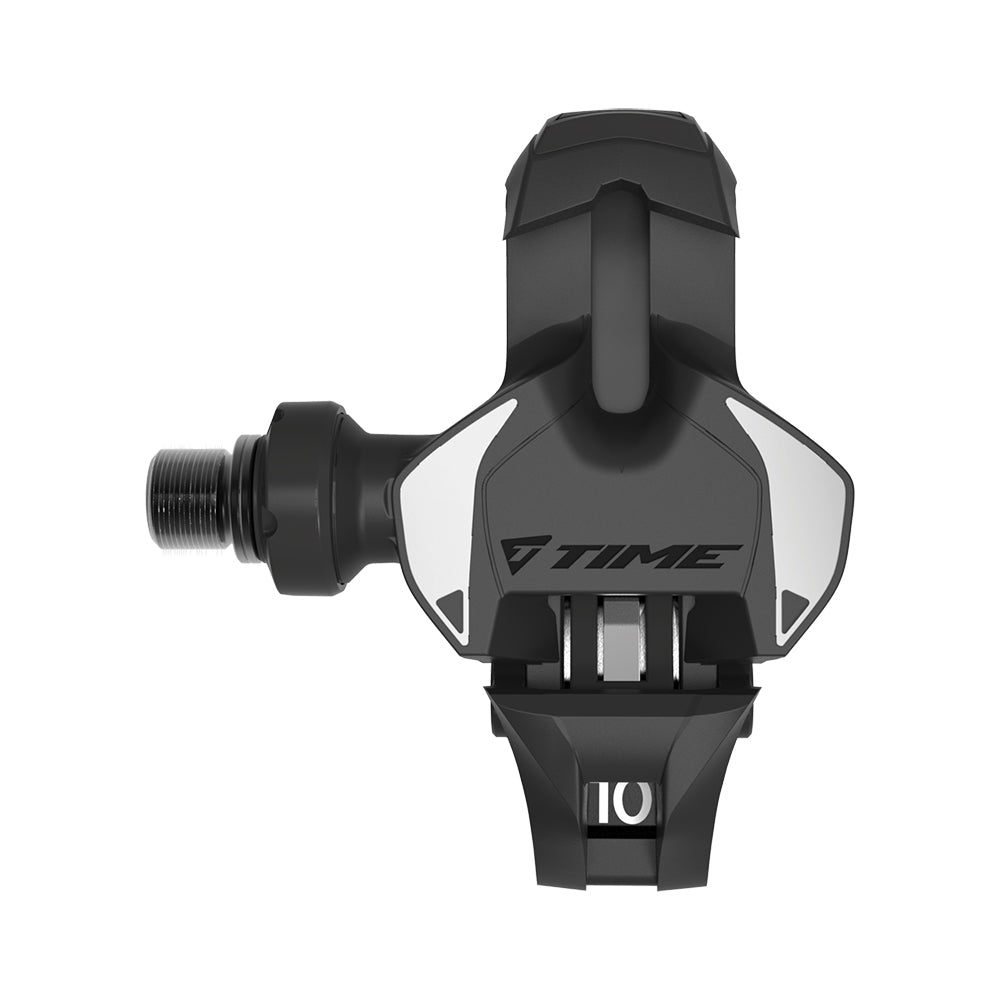

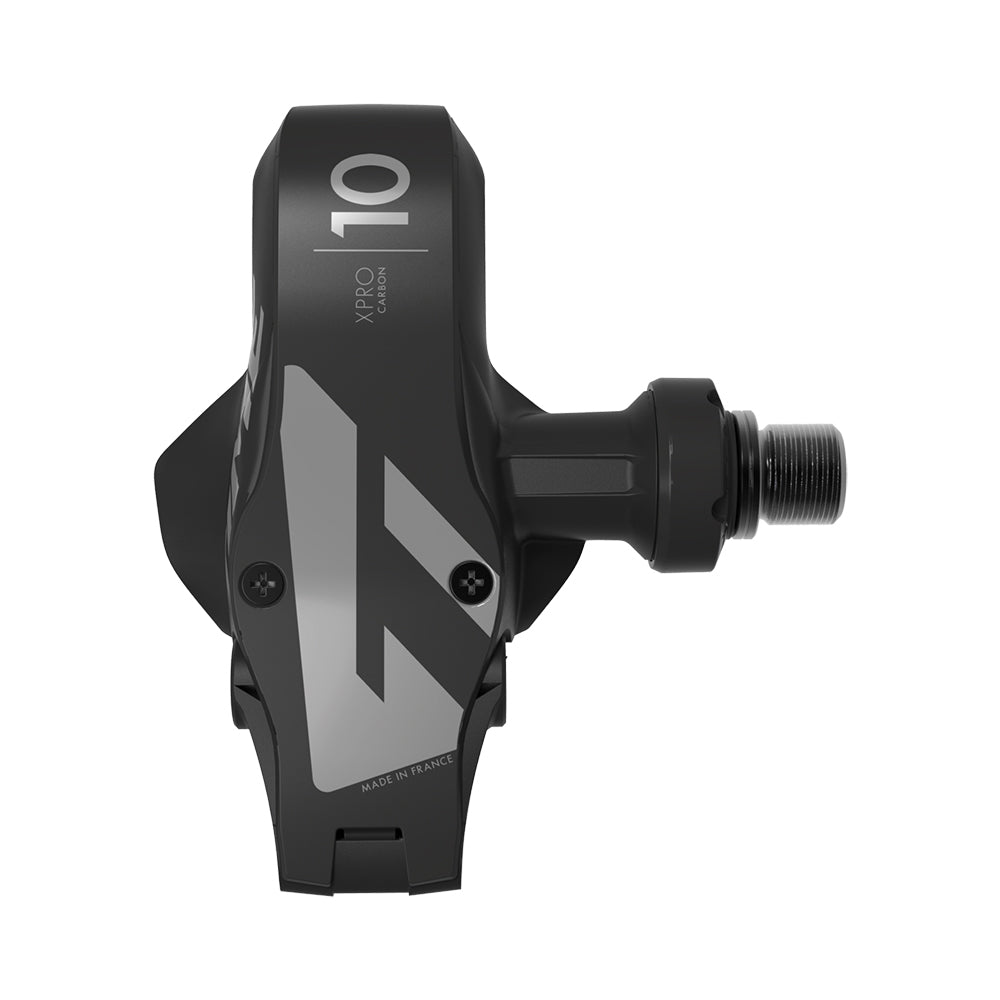

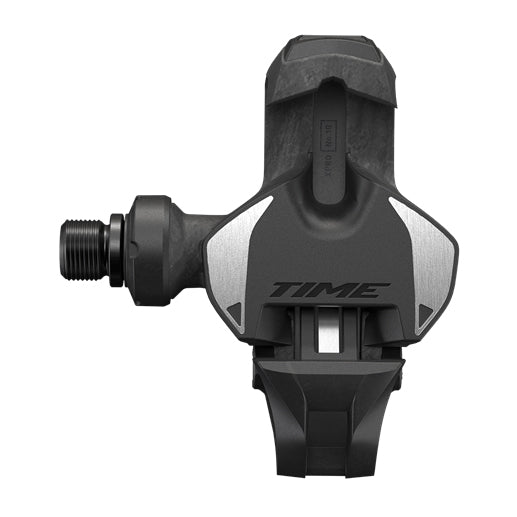

TIME XPRO 10 PEDAL (2024)
The XPRO 10 is TIME’s top blend of performance and value in a light weight and ergonomic race-ready pedal. The pedal maximizes power transfer and stability thanks to its large 725mm-squared surface area. The pedal’s bottom fairing helps improve aerodynamics and protect the carbon blade. TIME's patented pre-opened ICLIC system allows for fast and easy cleat engagement. TIME pedals are designed to eliminate pedal-induced discomfort. You can precisely manage tightness of the clamping mechanism with three settings of the tension adjustment on the carbon blade. TIME XPRO pedals offer three options for Q-factor to provide riders with more ergonomic options. The pedal’s low stack height provides good clearance. The XPRO 10 uses a hollow stainless-steel axle, making it strong but light.
SPECIFICATIONS
| Axle component |
Hollow steel axle |
| Bearings |
Steel |
| Body component |
Carbon-filled |
| Cleats |
ICLIC |
| Pedal stack height |
14.7mm |
| Angular freedom |
+5° to -5° with free cleats, 0° with fixed cleats |
| Contact surface area |
725 mm2 |
| Distance pedal spindle / crank arm |
51mm, 53mm, 57mm |
| Lateral freedom |
+1.25 mm or -1.25 mm |
| Release angle |
16° with free cleats |
| Tension |
3 different settings of carbon blade |
| Threading |
9/16 - 20 inch |
| Weight (per pedal) |
113g |
| Color (Pedal) |
Black |
| Accessories |
ICLIC free foot cleats |
| Intended use |
Road |
| Power Measurement |
Not Compatible |
|
|
FEATURES
- High performance, light, ergonomic at the right price.
- Fast and easy cleat engagement.
- Three tensions settings of carbon blade.
- Low stack height for good clearance.
- Cleats included with all pedal purchases.
|
