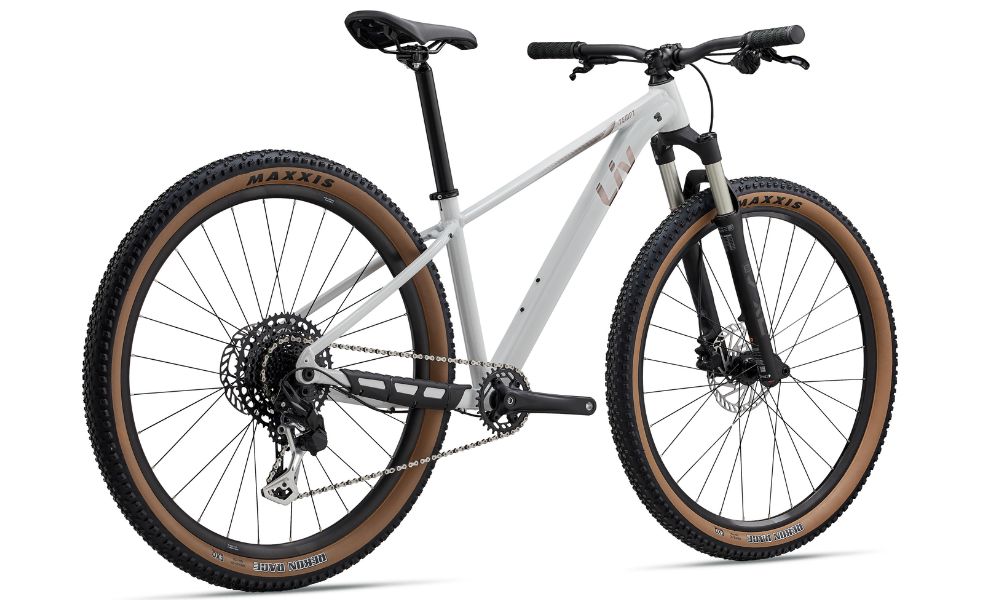

Liv 2027 Tempt 29 1
The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Modern MTB Design

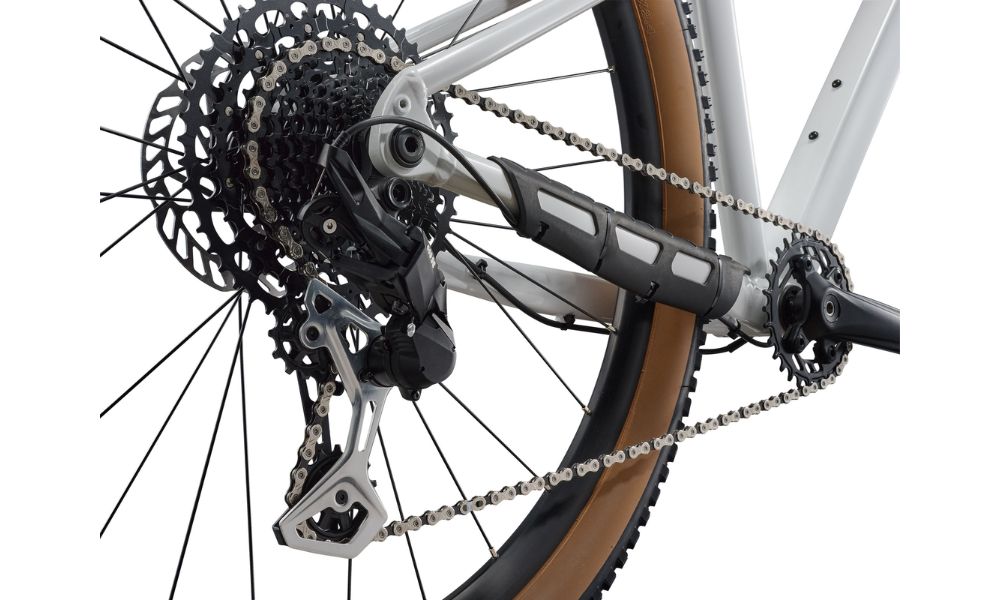

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Liv 2027 Tempt 29 1
Frame
Size: 29- S and M
Colour: Null White
Frame: ALUXX-grade aluminum, disc
Fork: GIANT SXC32-2 RCL Alloy SingleAir 29"/27.5" 15x110 TA XS: 80mm (27.5") Spring: Air, S: 80mm (27.5"), 100mm(29") Spring: Air, M: 100mm(/29") Spring: Air, L: 100mm(/29") Spring: Air
Shock:
Drivetrain
Crankset: ProWheel Charm Steel, 52.5mm chainline, 32t (27.5"), 30t w/O Chain Guard for (29") XS: 165mm(27.5"), S: 165mm(27.5")/170mm(29"), M: 170mm(29"), L: 170mm(29")
Pedals:
Chain: KMC X11
Bottom Bracket: FP-B902W
Rear Derailleur: Microshift Advent 1x11 RD-M7015M
Front Derailleur:
Derailleur Shifter: Microshift Advent MX 1x11 SL-M7115-R
Freewheel/Cassette: Microshift Advent MX 1x11 CS-H114 11-50T
Braking System
Brakes: Tektro HD-M3121, Hydraulic, [F] 180mm [R] 160mm
Brake Levers: Tektro HD-M3121
Wheels
Tyres: Maxxis Rekon Race 29x2.4" Rekon 27.5x2.4" 60 TPI wire bead
Wheels/Rims: Giant GX03V 27.5"/29" 6061 Aluminum, Double Wall, 21mm Inner Width, Disc, 28h
Hubs: alloy, sealed bearing
Other
Handlebar: Giant Connect Trail 690mm, 31.8 XS: 690(27.5"), S: 690(27.5") 750 (29"), M: 750(29"), L: 750(29")
Stem: Giant Sport Alloy 7 Degree XS: 40 (27.5"), S: 40(27.5"/29"), M: 50(29"), L: 50(29")
Seat Post: Giant Sport 30.9, XS: 350(27.5"), S: 350(27.5") / 375(29"), M: 375(29"), L: 375(29")
Saddle: Contact ergo
Liv 2027 Tempt 29 1
-
- XS (27.5")
-
150 cm
163 cm
-
- S (27.5")
-
158 cm 169 cm
-
- S (29")
-
158 cm 169 cm
-
- M (29")
-
164 cm 175 cm
| XS (27.5") | S (27.5") | S (29") | M (29") | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 330 | 365 | 380 | 410 |
| A1 Seat Post Insertion Depth (mm) | 280 | 310 | 330 | 360 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° |
| C Top Tube Length (mm) | 538 | 558 | 571 | 599 |
| D Head Tube Length (mm) | 90 | 95 | 90 | 100 |
| E Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 105.2 | 105.2 | 108.9 | 108.9 |
| H Wheelbase (mm) | 1080 | 1101 | 1129 | 1158 |
| I Chain Stay Length (mm) | 440 | 440 | 455 | 455 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 55 | 55 |
| K Stack (mm) | 548 | 553 | 593 | 602 |
| L Reach (mm) | 381 | 400 | 407 | 432 |
| M Stand Over Height (mm) | 680 | 689 | 689 | 708 |
| O Stem Length (mm) | 40 | 40 | 40 | 50 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 |
