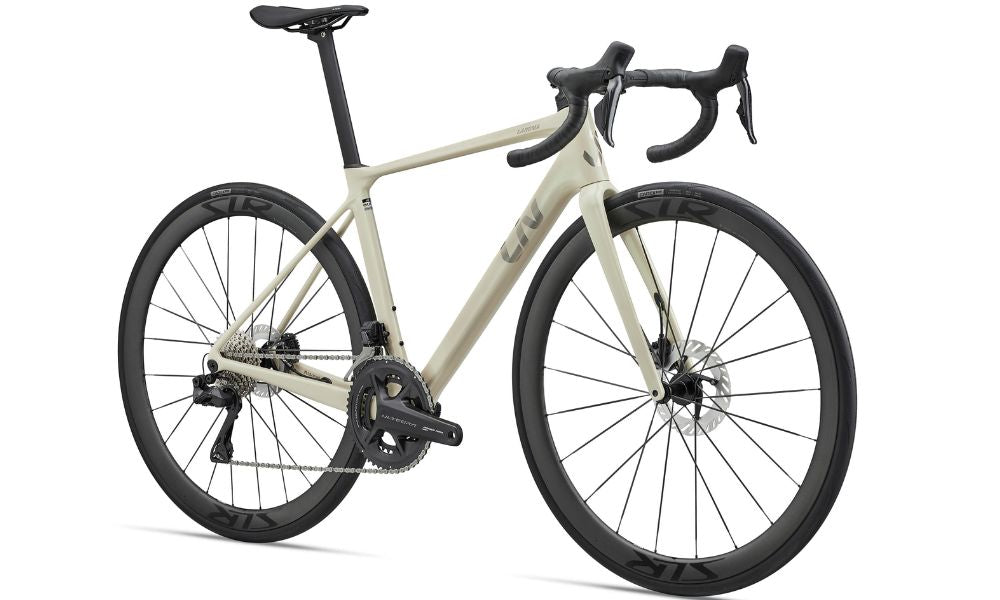

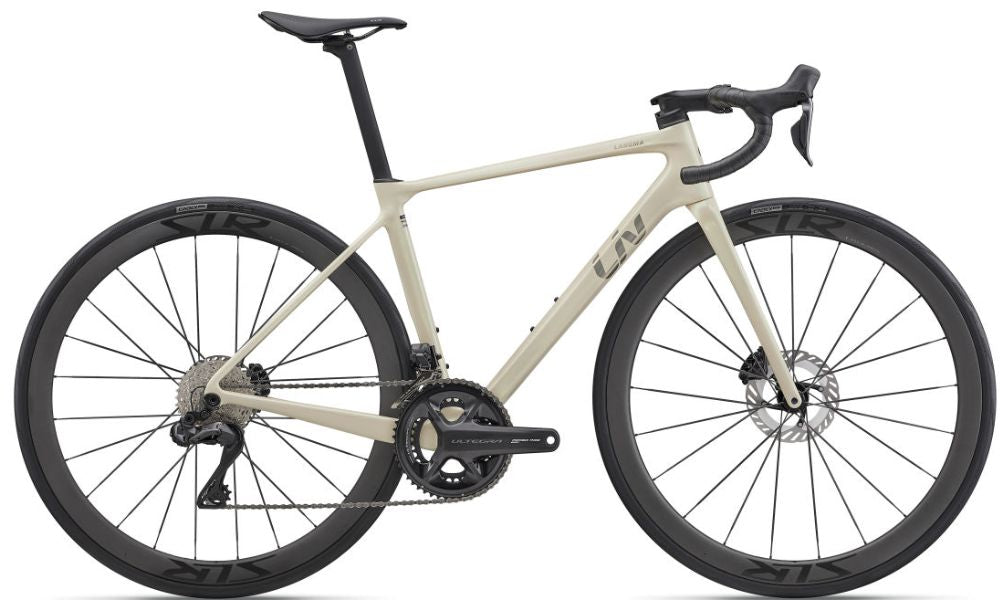

Liv 2027 Langma Advanced Pro 0-PC
It’s Langma Season.
The official bike of road riding season, the Langma Advanced Pro was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.
QOM-LEVEL EFFICIENCY
The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.
LIMIT-PUSHING CONTROL
Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.
GAP-WIDENING AERO
With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.
Liv 2027 Langma Advanced Pro 0-PC
Frame
Size: XS, S, and M
Colour: Desert Pearl
Frame: Advanced-grade composite, 12x142mm thru-axle, disc
Fork: Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano Ultegra, 36/52 with Giant Power Pro power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
Pedals:
Chain: Shimano CN-M8100
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Ultegra Di2
Front Derailleur: Shimano Ultegra Di2
Derailleur Shifter: Shimano Ultegra Di2
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x34
Braking System
Brakes: Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers: Shimano Ultegra Di2
Wheels
Tyres: CADEX Road Race GC, tubeless, 700x30c (30mm), folding
Wheels/Rims: Giant SLR 0 40 WheelSystem, [F] 40mm, [R] 40mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Other
Handlebar: Liv Contact SLR 31.8mm, 8-degree flare drop XXS: 340/360mm, XS: 340/360mm, S: 360/380mm, M: 370/400mm, L: 390/420mm
Stem: Giant Contact SL AeroLight, -10-degree XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
Seat Post: Giant Variant, composite, -5/+15mm offset
Saddle: Liv Alacra SL
Liv 2027 Langma Advnaced Pro 0-PC
-
- XXS
-
145 cm
160 cm
-
- XS
-
152 cm 166 cm
-
- S
-
158 cm 172 cm
-
- M
-
164 cm 178 cm
| XXS | XS | S | M | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 390 | 420 | 450 | 480 |
| B Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° |
| C Top Tube Length (mm) | 498 | 508 | 524 | 540 |
| D Head Tube Length (mm) | 105 | 120 | 135 | 155 |
| E Head Tube Angle | 70.0° | 71.0° | 72.0° | 72.5° |
| F Fork Rake (mm) | 49 | 49 | 49 | 49 |
| G Trail (mm) | 74 | 68 | 61 | 58 |
| H Wheelbase (mm) | 970 | 973 | 977 | 984 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 72 | 72 | 70 | 70 |
| K Stack (mm) | 499 | 517 | 532 | 553 |
| L Reach (mm) | 364 | 370 | 377 | 382 |
| M Stand Over Height (mm) | 685 | 707 | 736 | 763 |
| O Stem Length (mm) | 80 | 80 | 90 | 100 |
| P Crank Length (mm) | 160 | 165 | 165 | 170 |
