Liv 2026 Temtp E+
MORE THAN JUST A WAY TO GET AROUND—THE TEMPT E+ IS FREEDOM, FUN AND JOY.
Liv 2026 Tempt E+
Frame

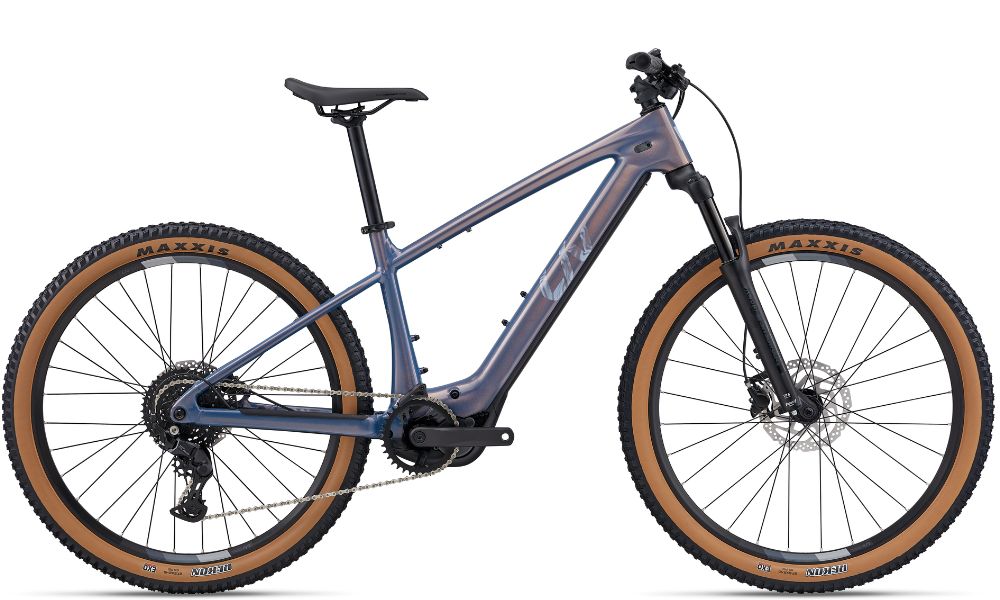

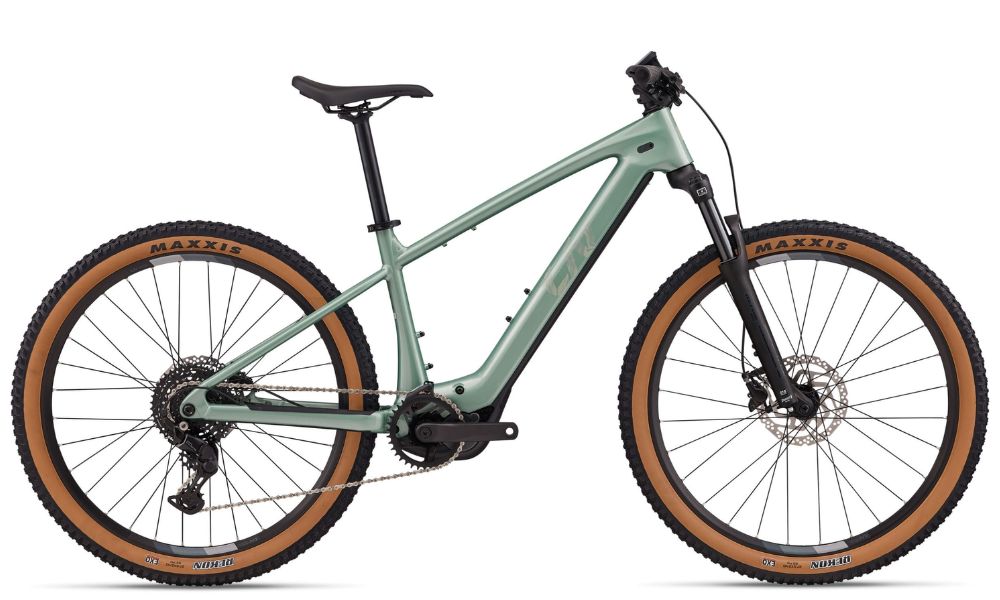

Size: XS, S, M, LColour: Lunar Eclipse or Seafoam Green
Frame: ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount
Fork: SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle
Shock:
Drivetrain
Crankset: Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms, (XS-S: 160mm, M-L: 165mm)Pedals:
Chain: KMC eGlide NP/BK, e-bike optimized
Bottom Bracket:
Rear Derailleur: Shimano Cues 9-speed
Front Derailleur: NA
Derailleur Shifter: Shimano Cues
Freewheel/Cassette: Shimano Cues, 11-41T, 9-speed
Braking System
Brakes: Shimano MT200, hydraulic disc, 180mm [F/R]Brake Levers: Shimano MT-200
Wheels
Tyres: Maxxis Rekon Tanwall XS-S: 27.5x2.4" / M-L: 29 x 2.4" Wire Bead 60TPIWheels/Rims: Liv, GX03V, 27.5 / 29, Alluminum (XS-S: 27.5, M-L: 29)
Hubs: [F] eTracker boost alloy 6-bolt disc 15x110mm [R] eTracker boost alloy 6-bolt disc 12x148mm
Other
Handlebar: Giant Connect TR Riser 31.8x690~750mmStem: Giant Contact
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle: Liv Ergo Trail ESG
E-Bike
Drive Unit: Giant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technologyBattery: Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Display: Giant RideControl Dash 2, high-angle visibility, full color LCD display
Controller: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Charger: Giant EnergyPak smart charger 4A
Liv 2026 Tempt E+
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 365 | 405 | 445 | 485 |
| A1 Seat Post Insertion Depth (mm) | 170 | 200 | 240 | 260 |
| B Seat Tube Angle | 78.0° | 78.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 560 | 570 | 595 | 615 |
| D Head Tube Length (mm) | 110 | 115 | 105 | 115 |
| E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F Fork Rake (mm) | 44 | 44 | 46 | 46 |
| H Wheelbase (mm) | 1151 | 1162 | 1139 | 1160 |
| I Chain Stay Length (mm) | 450 | 450 | 470 | 470 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 60 | 60 |
| K Stack (mm) | 596 | 600 | 618 | 627 |
| L Reach (mm) | 433 | 442 | 417 | 435 |
| N Handlebar Width (mm) | 690 | 690 | 750 | 750 |
| O Stem Length (mm) | 50 | 50 | 50 | 60 |
| Q Wheel Size | 27.5+ | 27.5+ | 29" | 29" |
