Description

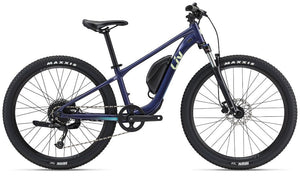

Liv 2023 Tempt E+ Junior 26
POWER THE ADVENTURE
Experienced real-world adventure aboard The Tempt E+ 26 made to instil confidence and inspire adventure.
Lightweight and agile
The Tempt E+ 26 frame is constructed with ALUXX aluminium, making it light and durable. Equipped with a SyncDrive Move motor with 30Nm of natural pedal assistance, the Tempt E+ 26 is agile and easy to manoeuvre.
Safe and stable
Equipped with disc brakes, 80mm of travel up front, wide 2.2-inch tyres, and appropriate motor output that won’t overwhelm younger riders (max speed 20km/h). The Tempt E+ 26 is safe, stable, and ready for adventure.
Perfect Fit
Adjustable seatpost and low standover height for young riders allow for a great fit from the start.
Specifications
Liv 2023 Tempt E+ Junior 26
Frame
Colour: Milky Way
Frame: ALUXX-Grade aluminium, integrated KSA18 kickstand mount
Fork: SR Suntour XCM HLO 26", 80mm travel
Shock: NA
Drivetrain
Crankset: Forged Alloy minimal Q-factor, 36T
Pedals:
Chain: KMC e9 Sport
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: Shimano Alivio, 9-speed
Front Derailleur: NA
Derailleur Shifter: Shimano Altus
Freewheel/Cassette: Shimano CS-HG200, 11-36T, 9-speed
Drive Unit: SyncDrive Move, Rear Hub, 30Nm
Wheels
Tyres: [F] and [R] Maxxis Ikon 26x2.20"
Wheels/Rims: Giant GX03V 26" aluminium
Hubs: Tektro HD-M282, hydraulic disc, [F] 160mm, [R] 160mm
Braking System
Brakes: Tektro HD-M282, hydraulic disc, [F] 160mm, [R] 160mm
Brake Levers: Tektro HD-M282
Other
Handlebar: Giant Connect XC Riser, 31.8mm
Stem: Giant Connect, 50mm
Saddle: Giant Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Battery: EnergyPak 240Wh
Charger: EnergyPak Smart 4A charger
Display/Control: RideControl Dash, full colour lcd screen
Geometry
Liv 2023 Tempt E+ Junior 26
| ONE SIZE | ||
|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 320 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 530 |
| D | HEAD TUBE LENGTH (mm) | 120 |
| E | HEAD TUBE ANGLE | 67.0° |
| F | FORK RAKE (mm) | 40 |
| G | TRAIL (mm) | 101 |
| H | WHEELBASE (mm) | 1053 |
| I | CHAIN STAY LENGTH (mm) | 425 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 548 |
| L | REACH (mm) | 365 |
| M | STAND OVER HEIGHT (mm) | 691 |
| O | STEM LENGTH (mm) | 50 |
| P | CRANK LENGTH (mm) | 160 |
| Q | WHEEL SIZE | 26" |
