Description

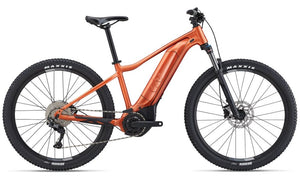

Liv 2023 Tempt E+1
POWER YOUR MOTIVATION
More than just a way to get around - The Tempt E+ is freedom, fun and joy.
Accessible and Reliable
The ultra-reliable EnergyPak 500Whr has an average range of 120km with a potential to reach up to 180km, while the EnergyPak 400Whr has an average range of 100km and can reach 150km*, helping you ride further to access new trails and experiences. *Actual range depends on several factors including weight, elevation, terrain and acceleration.
Integrated Design
The easy-to-access EnergyPak side-release battery isbeautifully integrated into a lightweight and durable ALUXX-Grade aluminium frame, designed and tuned for women using Liv's women first philosophy.
Smooth Riding
SyncDrive Core motor with 50Nm torque creates a natural yet powerful ride feel.
Specifications
Liv 2023 Tempt E+ 1
Frame
Colour: Copper Coin
Frame: ALUXX-Grade aluminium, disc, integrated KSA18 kickstand mount
Fork: SR Suntour XCR 32 Coil LO Boost, 29"/27.5", 100mm travel, lockout
Shock: NA
Drivetrain
Crankset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
Pedals:
Chain: KMC e.10 Sport, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore, 10-speed, Shadow+
Front Derailleur: NA
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano Deore, CS-M4100, 11-42T, 10-speed
Drive Unit: SyncDrive Core, 50Nm, Powered by Yamaha
Wheels
Tyres: [F] and [R] Maxxis Rekon 27.5x2.4"/ 29r x 2.4" Wire Bead 60TPI
Wheels/Rims: Liv GX03V 29 or 27.5, alloy, double wall
Hubs: Giant eTracker Sport
Braking System
Brakes: Shimano BR-MT200, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers: Shimano BL-MT200
Other
Handlebar: Giant Connect TR Riser 31.8mm
Stem: Giant Connect
Saddle: Liv Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Battery: EnergyPak 500Wh
Charger: EnergyPak 4A fast charger
Display/Control: RideControl Dash, full colour lcd screen
Geometry
Liv 2023 tempt E+1
-
- XS
-
152 cm
163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 175 cm
-
- L
-
170 cm 181 cm
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 365 | 405 | 445 | 485 |
| B | SEAT TUBE ANGLE | 74,0° | 73,5° | 73,0° | 73,0° |
| C | TOP TUBE LENGTH (mm) | 545 | 570 | 595 | 615 |
| D | HEAD TUBE LENGTH (mm) | 105 | 115 | 105 | 115 |
| E | HEAD TUBE ANGLE | 68,0° | 68,0° | 68,0° | 68,0° |
| F | FORK RAKE (mm) | 42 | 42 | 46 | 46 |
| G | TRAIL (mm) | 103,8 | 103,8 | 99,5 | 99,5 |
| H | WHEELBASE (mm) | 1112 | 1132 | 1159 | 1179 |
| I | CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
| J | BOTTOM BRACKET DROP (mm) | 50 | 50 | 45 | 45 |
| K | STACK (mm) | 591 | 600 | 603 | 612 |
| L | REACH (mm) | 376 | 392 | 411 | 428 |
| M | STAND OVER HEIGHT (mm) | 693 | 722 | 761 | 768 |
| N | HANDLEBAR WIDTH (mm) | 690 | 690 | 750 | 750 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 60 |
| P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 |
| Q | WHEEL SIZE | 27.5" | 27.5" | 29" | 29" |
