Description

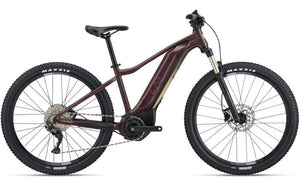

Liv 2022 Tempt E+ 1
MORE THAN JUST A WAY TO GET AROUND—THE TEMPT E+ IS FREEDOM, FUN AND JOY.
Accessible and Reliable
The ultra-reliable EnergyPak 400wh or 500Wh batteries help you ride further to access to new trails and experiences.
Integrated Design
The easy-to-access EnergyPak side-release battery is beautifully integrated into a lightweight and durable ALUXX-Grade aluminium frame, designed and tuned for women using Liv’s women first philosophy.
Smooth Riding
SyncDrive Core motor with 50Nm torque creates a natural yet powerful ride feel.
Specifications
Liv 2022 Tempt E+ 1
Frame
Colour: Figuier
Frame: ALUXX-Grade aluminium, disc
Fork: SR Suntour XCR 32 Coil LO Boost, 100mm travel, lockout
Shock: N/A
Weight: N/A
Drivetrain
Crankset: Forged alloy, 36T XS:165mm, S:165mm, M:170mm, L:170mm
Pedals: N/A
Chain: KMC e.10 Sport, e-bike optimised
Bottom Bracket: N/A
Rear Derailleur: Shimano Deore, 10-speed, Shadow+
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano HG50-10, 11-42T, 10-speed
Drive Unit: SyncDrive Core, 50Nm, Powered by Yamaha
Battery: EnergyPak 500Wh
Wheels
Tires: Maxxis Rekon 29x2.4" / 27.5x2.4" (XS-S: 27.5, M-L: 29er)
Wheels/Rims: Giant alloy disc
Hubs: Giant eTracker Sport
Braking System
Brakes: Shimano BR-MT200, hydraulic disc [F]180mm, [R] 180mm
Brake Levers: Shimano BL-MT200
Other
Handle Bar: Giant Connect TR Riser 31.8mm
Stem Headset: Giant Sport, alloy, 7-degree XS: 40mm, S: 40mm, M: 50mm, L: 60MM
Grips: Liv Connect Ergo
Saddle: Liv Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Controller: RideControl Dash, full color LCD screen
Display: RideControl Dash, full color LCD screen
Sizing Guide
Liv 2022 Tempt E+ 1
-
- XS
- 152 cm 163 cm
-
- S
- 158 cm 169 cm
-
- M
- 164 cm 175 cm
-
- L
- 170 cm 181 cm

XS | S | M | L | ||
---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 365 | 405 | 445 | 485 |
B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° |
C | TOP TUBE LENGTH (mm) | 545 | 570 | 595 | 615 |
D | HEAD TUBE LENGTH (mm) | 105 | 115 | 105 | 115 |
E | HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° | 68.0° |
F | FORK RAKE (mm) | 42 | 42 | 46 | 46 |
G | TRAIL (mm) | 103.8 | 103.8 | 99.5 | 99.5 |
H | WHEELBASE (mm) | 1112 | 1132 | 1159 | 1179 |
I | CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
J | BOTTOM BRACKET DROP (mm) | 50 | 50 | 45 | 45 |
K | STACK (mm) | 591 | 600 | 603 | 612 |
L | REACH (mm) | 376 | 392 | 411 | 428 |
M | STAND OVER HEIGHT (mm) | 693 | 722 | 761 | 768 |
O | STEM LENGTH (mm) | 40 | 40 | 50 | 60 |
P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 |
Q | WHEEL SIZE | 27.5" | 27.5" | 29" | 29" |
*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
