BIKES ARRIVING FROM DECEMBER

Please contact store for availability or to PRE-ORDER on 04 499 9194 or giantwellington@gmail.com

Full power that’s fully connected. The new Trance Advanced E+ and Giant E+ System were engineered as one for a full-power, fully controlled E-MTB experience. The frame, Maestro suspension, powertrain and software work together to give you instant power from 0 RPM, with sustained support and controlled grip that keeps you connected to the trail.

ADVANCED CONTROL

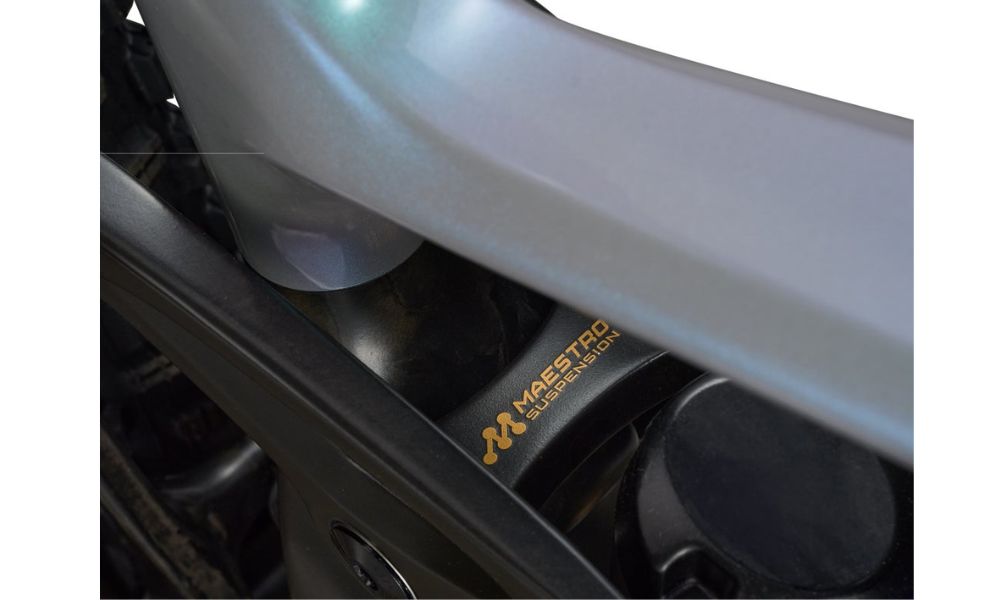

Raw power matters, but it’s the smooth balance of torque and control that truly shapes your ride. While most E-MTBs must compromise their suspension designs around off-the-shelf motors, we engineered the SyncDrive Pro 4 motor and Maestro suspension together using a custom motor housing to accommodate Maestro’s proven dual-link suspension kinematics. The Synchronized Power Matrix senses the ride and adjusts the support to your tuning. When steep climbs turn loose, Traction Control detects rear wheel slip and refines the assist, so power finds grip and you stay in control. A mixed-wheel setup—29-inch front for smooth roll-over, 27.5-inch rear for added agility—and 3-position flip-chip geometry let you dial in handling to your riding style and terrain.

ALWAYS-ON POWER

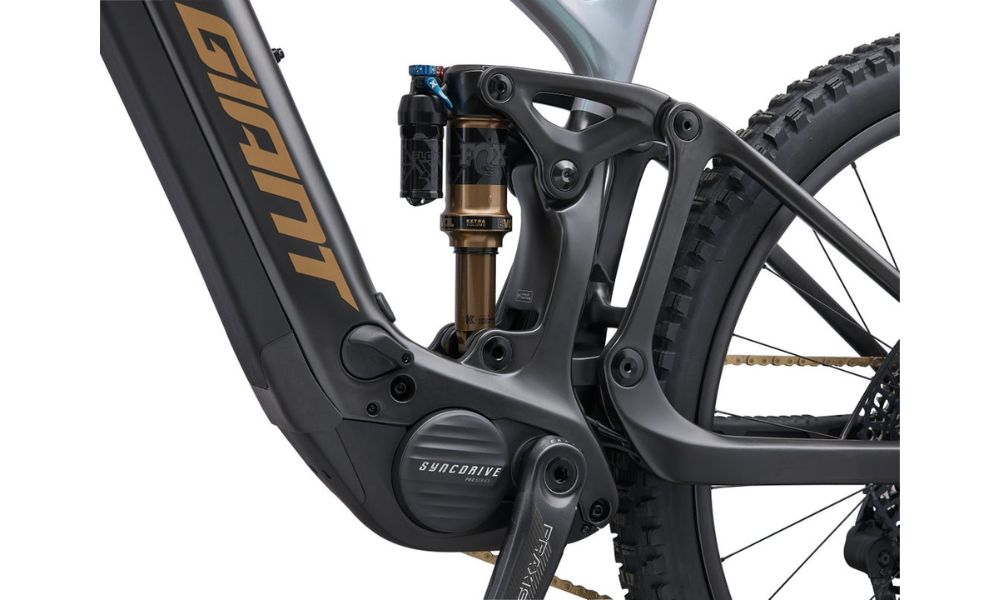

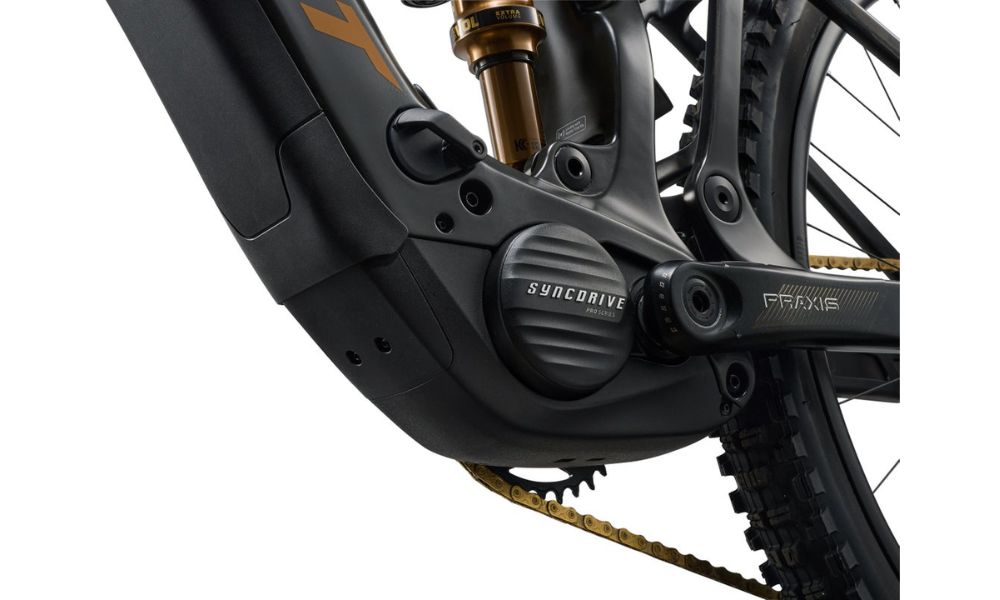

The new 48V SyncDrive Pro 4 motor delivers lightning-fast response (0.28 seconds) and 120Nm of torque from the first crank of your pedals, starting at 0 rpm. It’s designed to read force, not rotation. Best of all, it doesn’t taper at speed, delivering 850W of peak power across the full cadence range. Weighing just 21.9kg with a new 840Wh battery, the new Trance Advanced E+ 0 handles like a lighter bike and holds power where others fade.

FULL-POWER CONFIDENCE

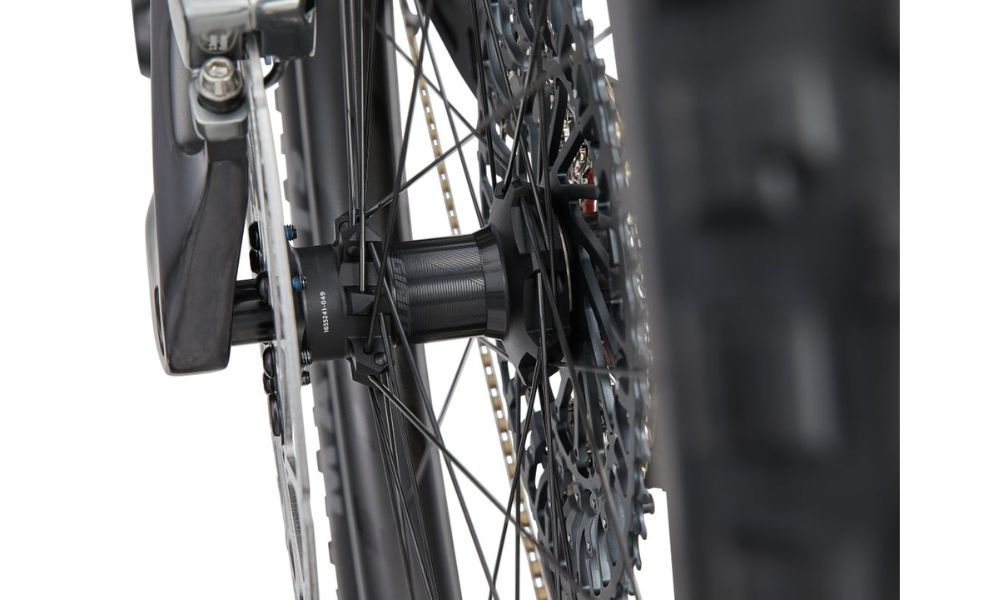

More power and torque lead to more stress on everything. The new Trance Advanced E+ is built to handle the forces of full-power E-MTB riding with engineered durability across the board. The new TRX and TRA HD WheelSystems feature high-torque titanium ratchet hubs that are 20% stronger than the previous generation and 25% stronger in fatigue testing than leading competitors. A new high-torque KMC chain delivers 35% stronger pin strength versus leading benchmark 12-speed chains. The EnergyPak 840 battery has a 2,300-cycle lifespan. And it’s all backed by Giant’s global retailer and service network.

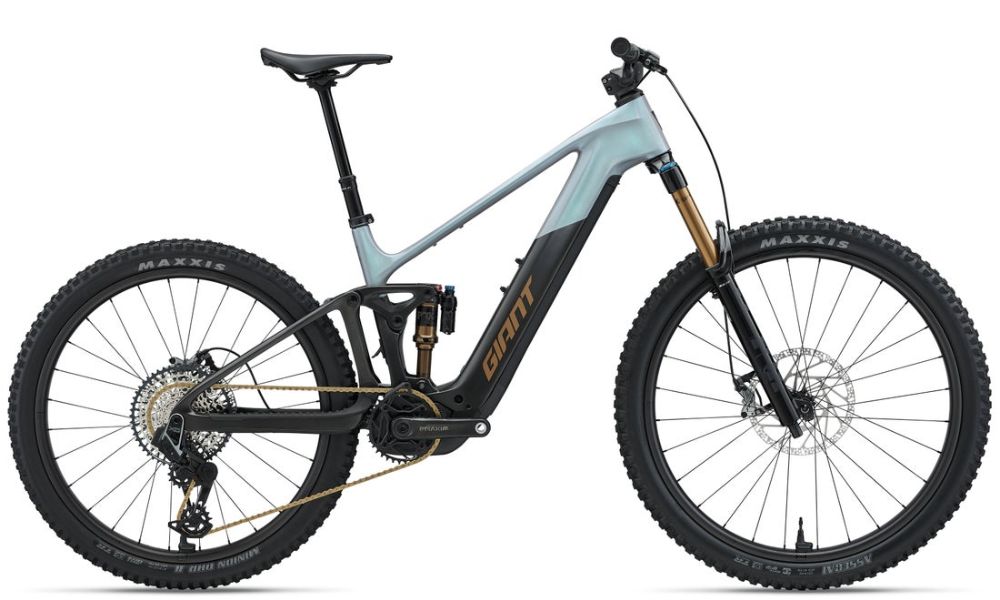

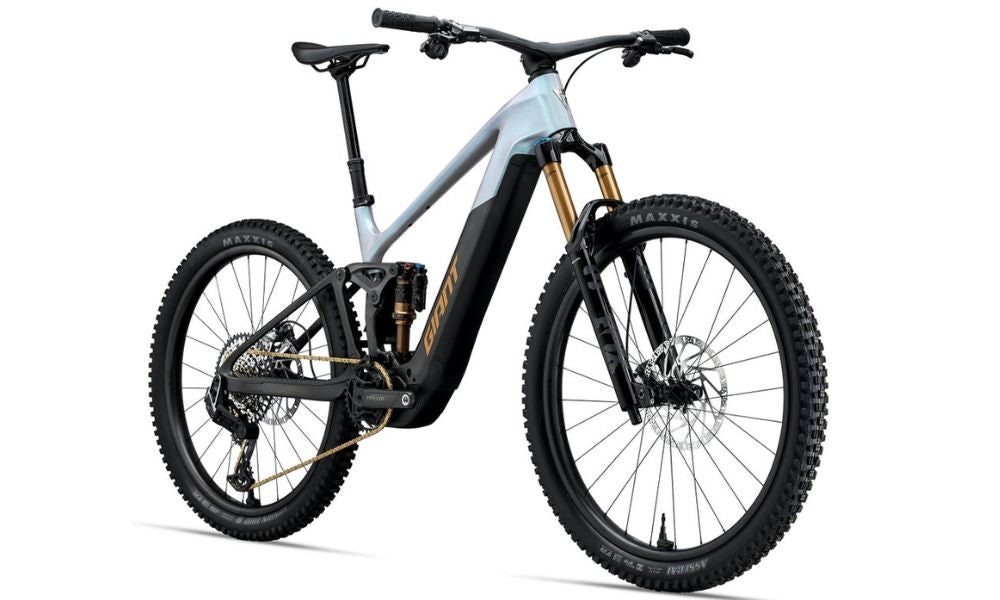

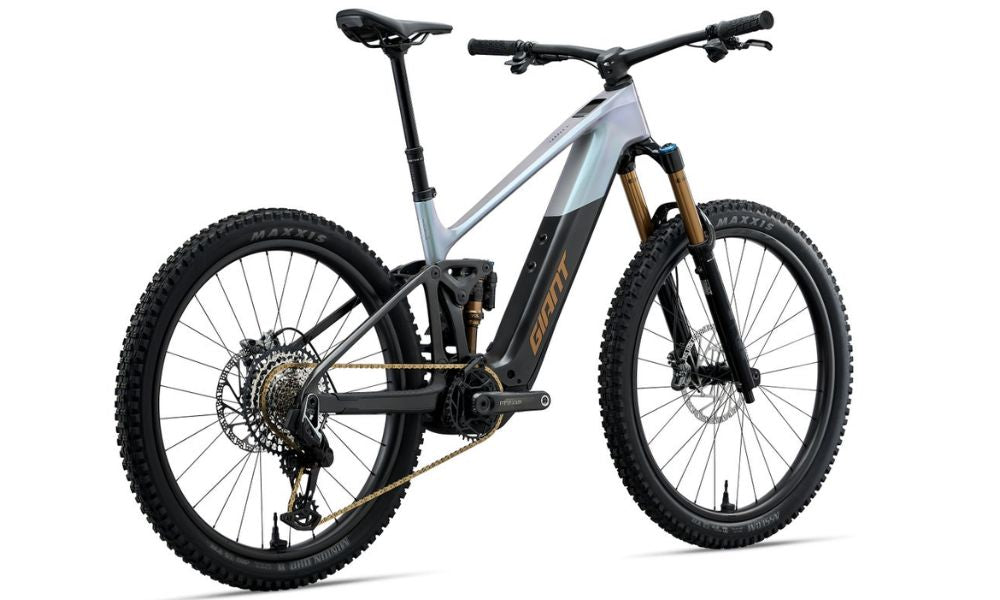

Giant 2027 Trance Advanced E+ 0

Frame

Size: S, M, L
Colour: Prismatic Haze

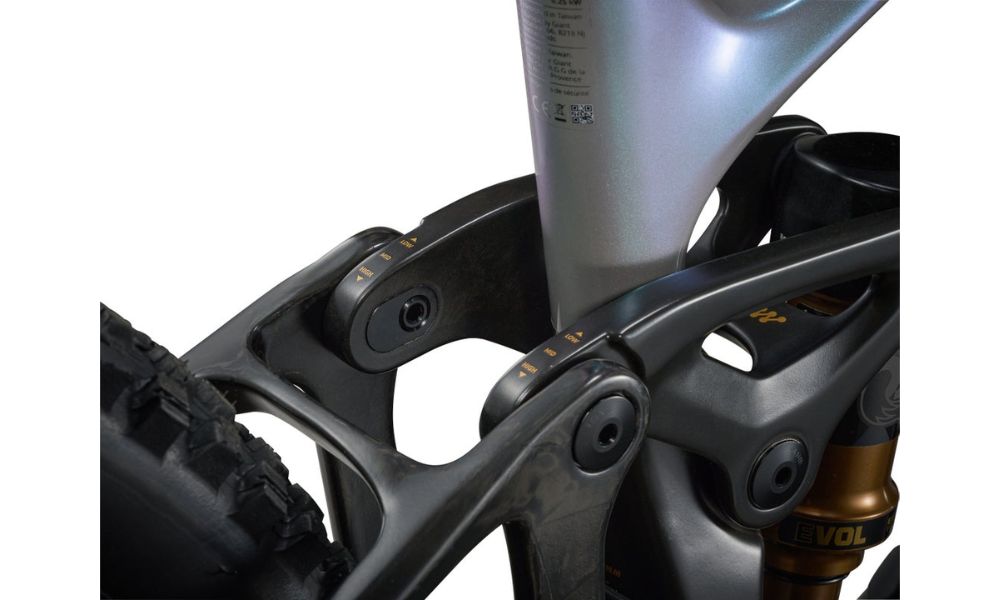

Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle

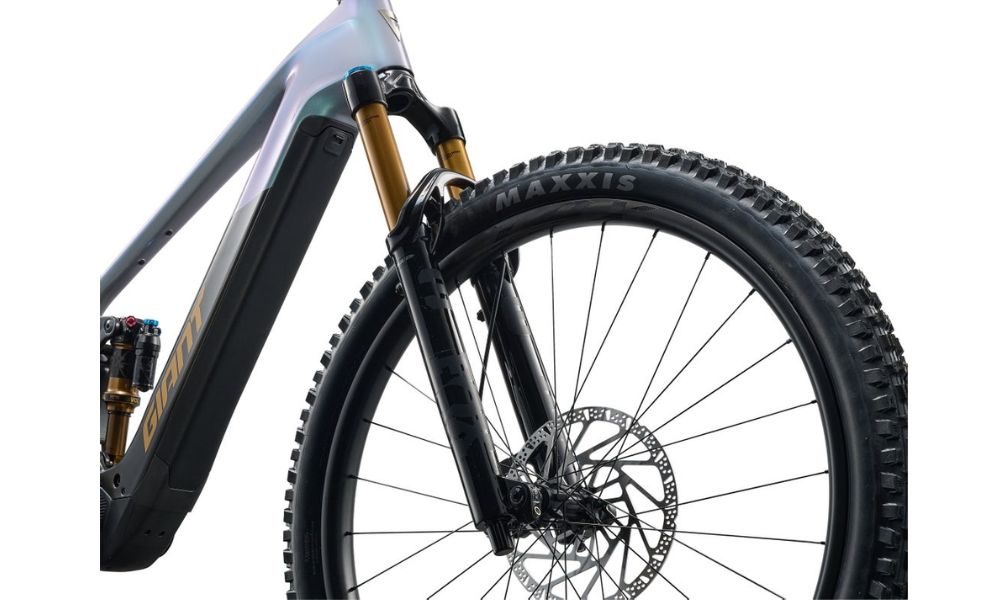

Fork: Fox 36 Factory, 160mm travel, 44mm offset, GRIP X damper, Kabolt-X 15x110mm thru-axle

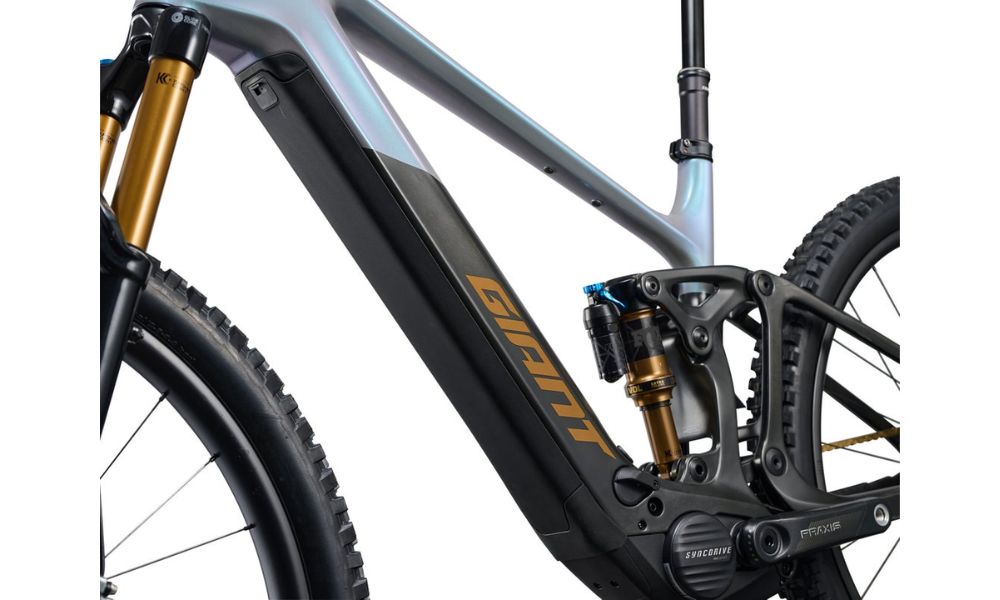

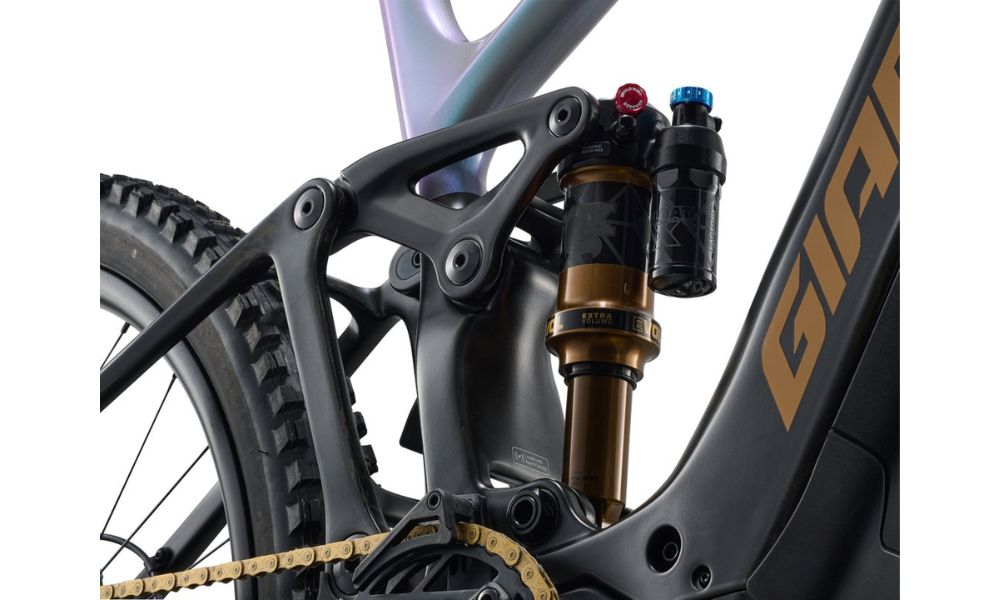

Shock: Fox Float X Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned

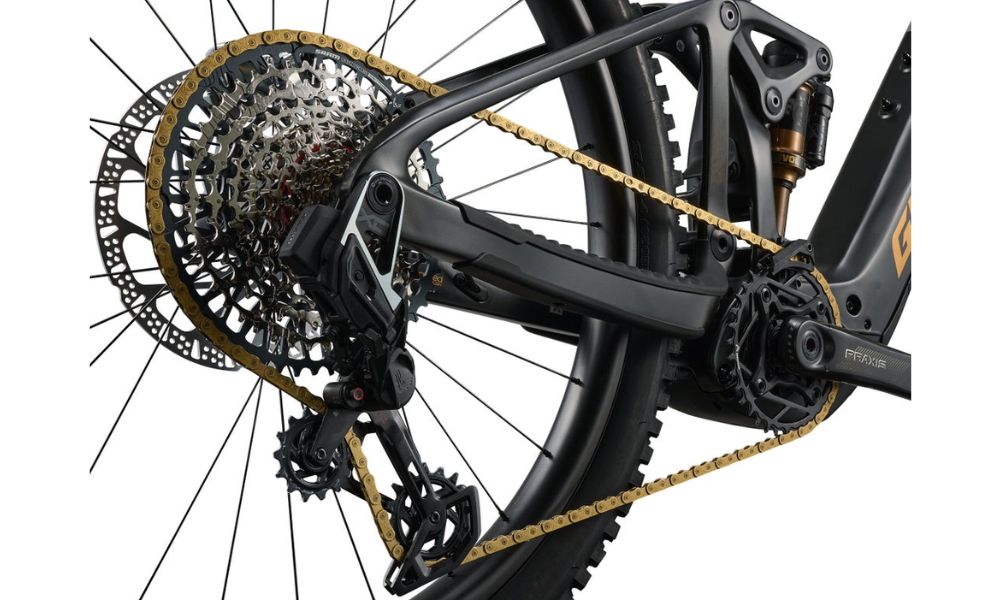

Drivetrain

Crankset: "Praxis Performance Carbon e-crank arms SRAM Eagle Transmission steel direct mount, 36T chain ring S:155mm, M: 155mm, L:155mm, XL:155mm"
Pedals:
Chain: KMC eFlatHT
Bottom Bracket:

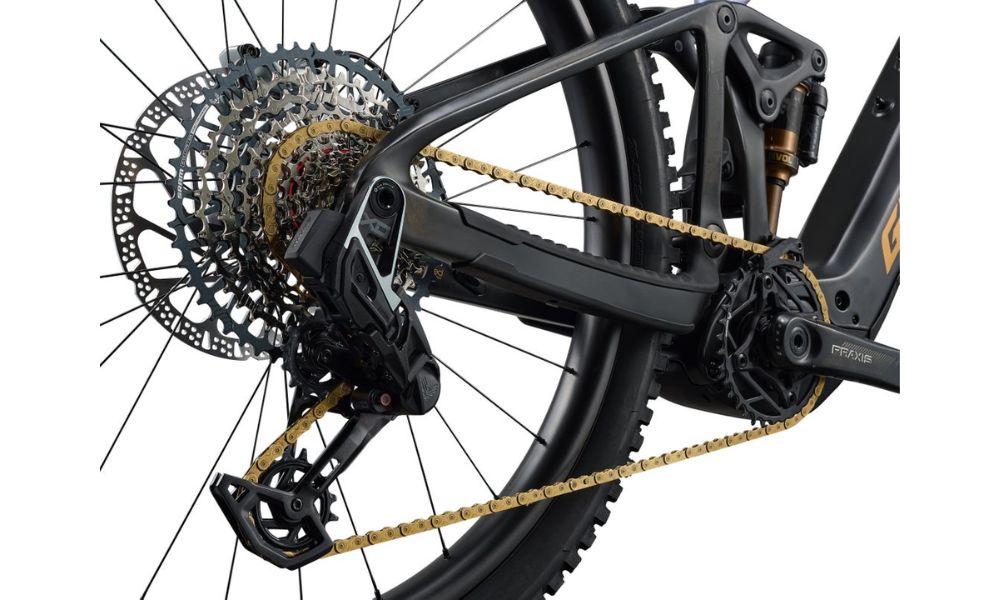

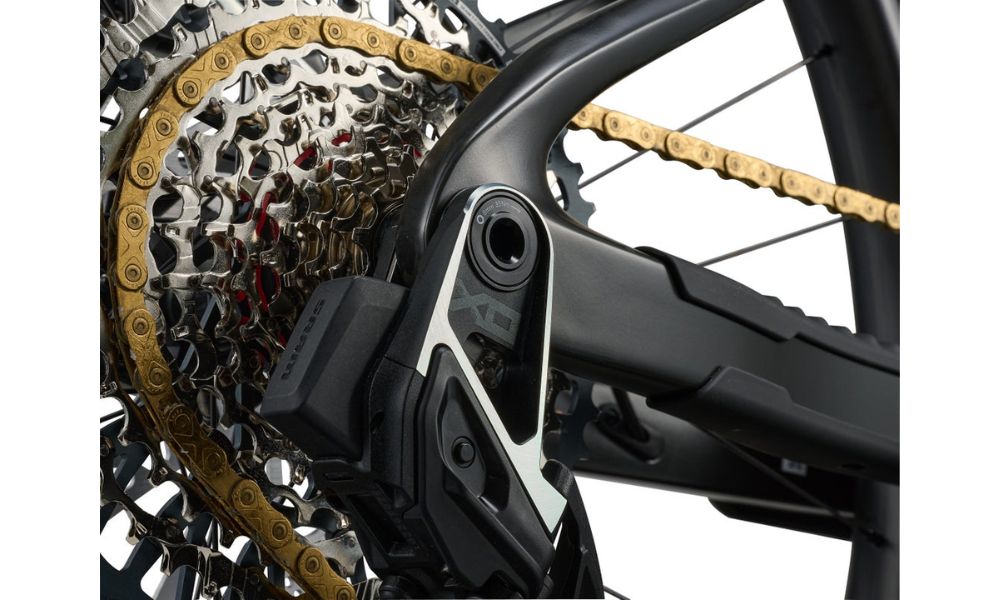

Rear Derailleur: SRAM X0 Eagle Transmission AXS
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod, Rocker Paddle, 1x12
Freewheel/Cassette: SRAM GX XS-1275 Eagle Tranmission 10-52T

Braking System

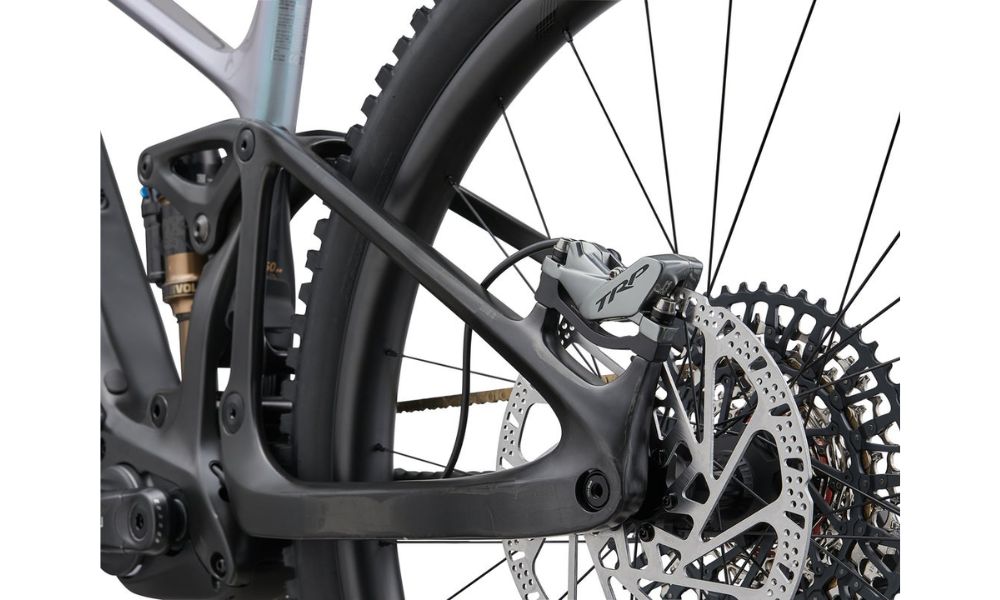

Brakes: TRP EVO Pro, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Pro

Wheels

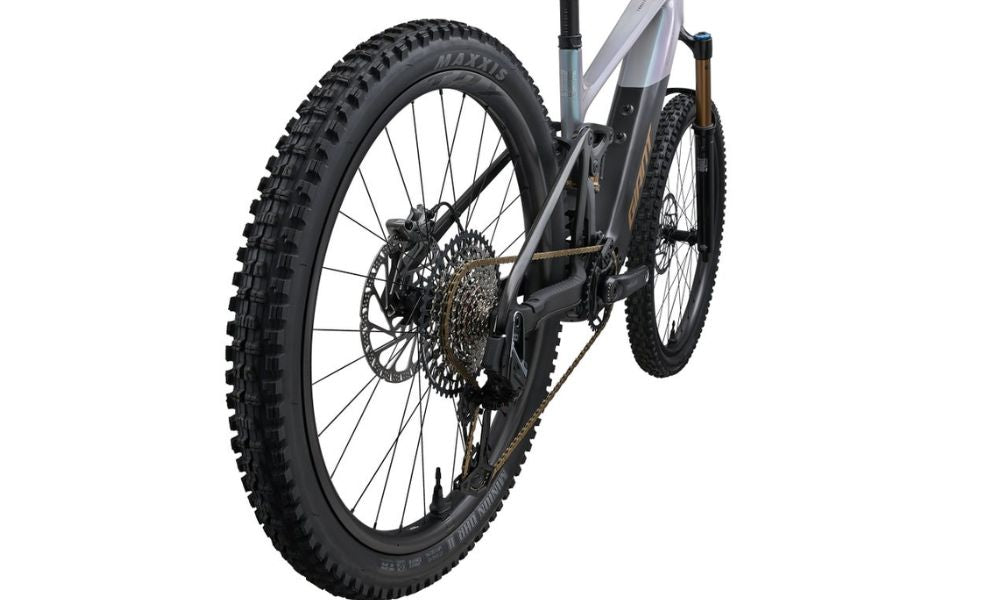

Tyres: [F] "Maxxis Assagai 29x2.5"" foldable, Tubeless, EXO+, 3C Maxx Grip [R] Maxxis Minion DHR II 27.5x2.4"" foldable, Tubeless, EXO+ 3C Maxx Terra
Wheels/Rims: "Giant TRX Hookless Tubeless ready Carbon 29"" [F] 27.5"" [R] 30mm inner width"
Hubs: [F] Giant E-TRX MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRX MTB Alloy Hub, SRAM XD Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H

Other

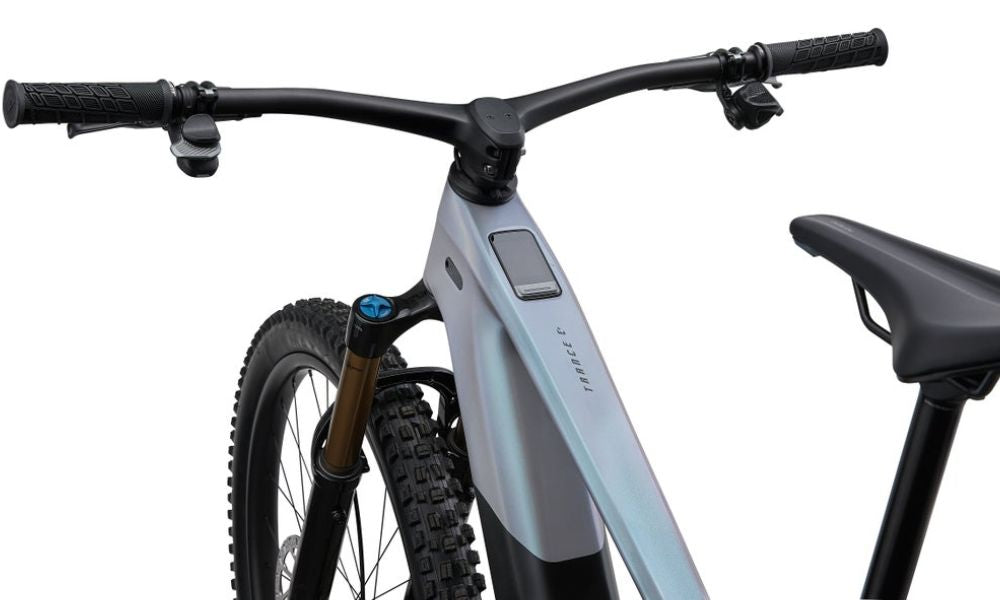

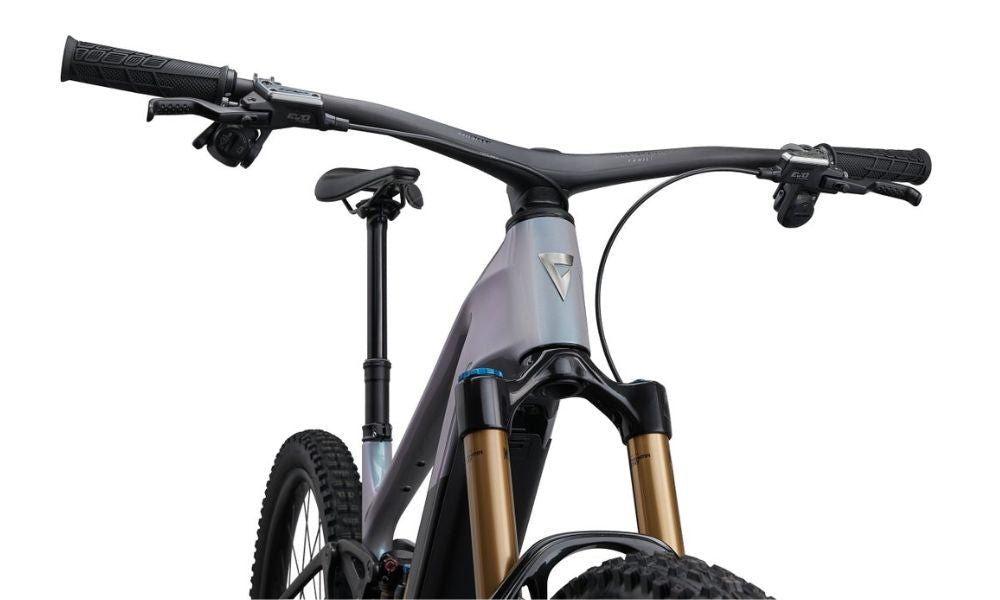

Handlebar: "Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System"
Stem: "Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System"

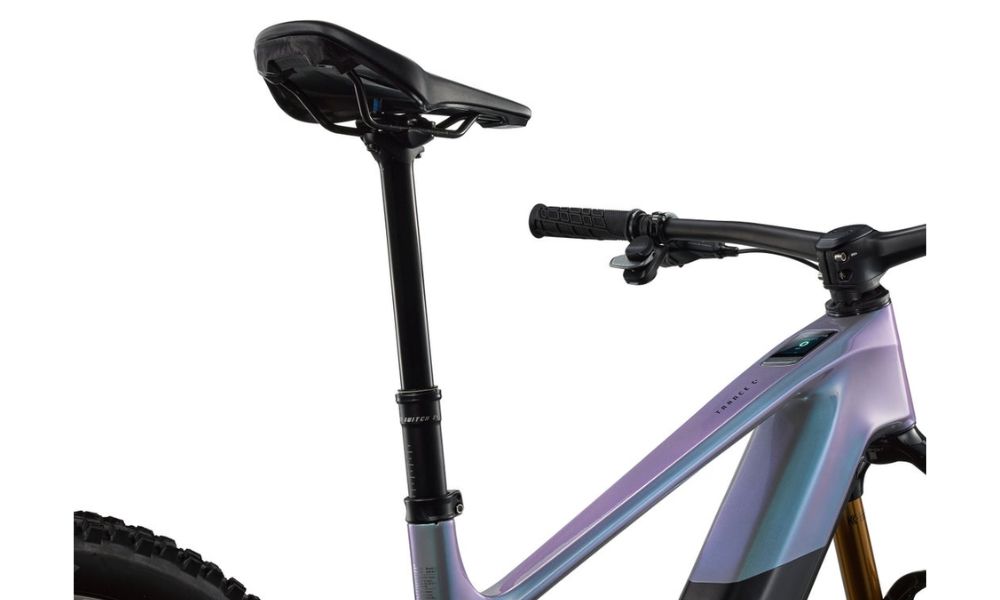

Seat Post: "Giant Contact Switch E, electronic travel-adjust dropper post S: 140mm travel / 30.9 x 457mm M:170mm travel / 30.9 x 514mm L: 170mm travel / 30.9 x 514mm

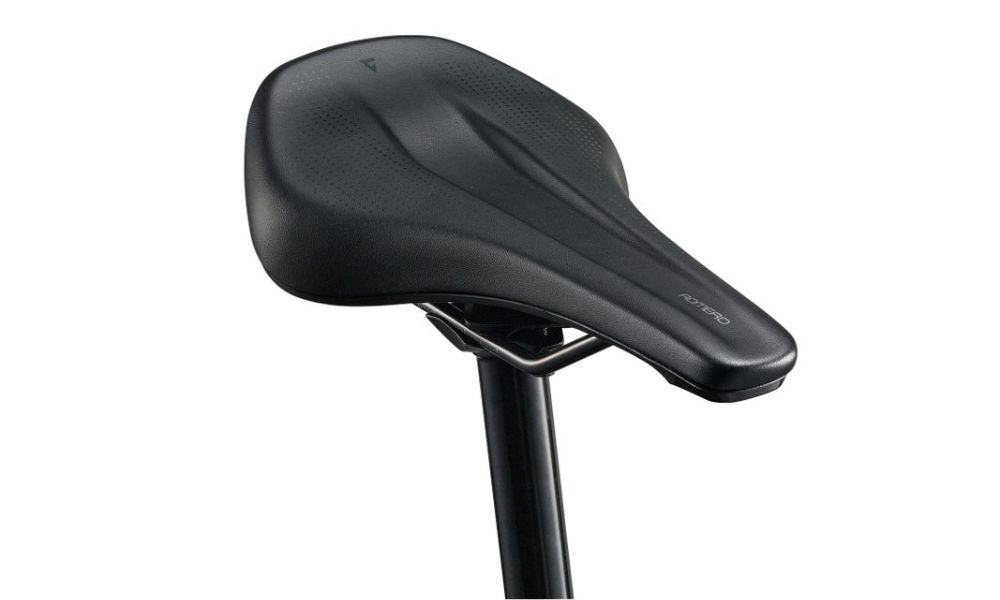

Saddle: Giant Romero SL HD

E-Bike

Drive Unit: Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power, 45Km/h max assist
Battery: "EnergyPak Smart 840Wh EnergyPak Plus 280 range extender compatible"

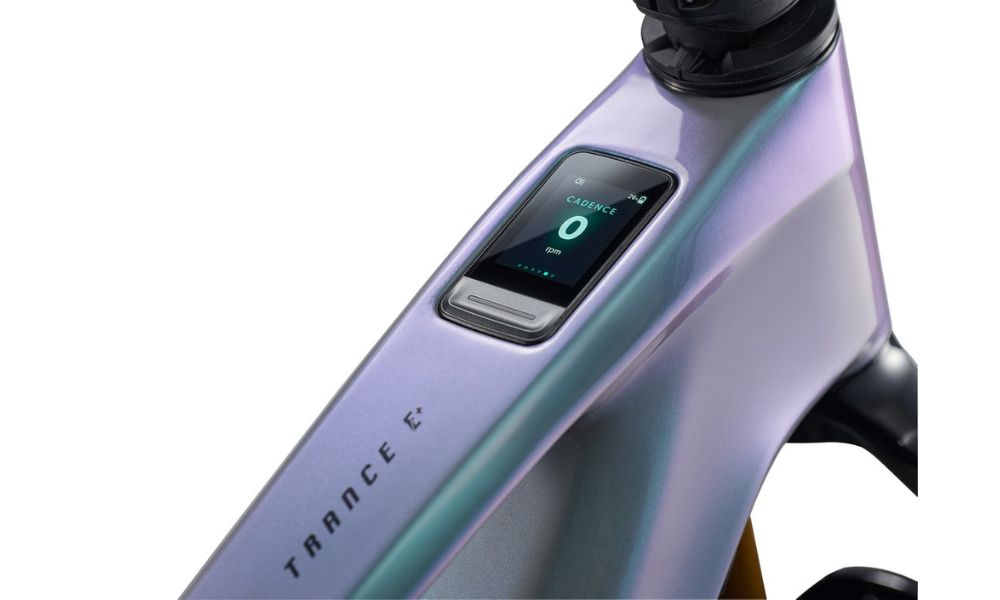

Display: "RideControl GO LUX, frame integrated LED display ANT+ "

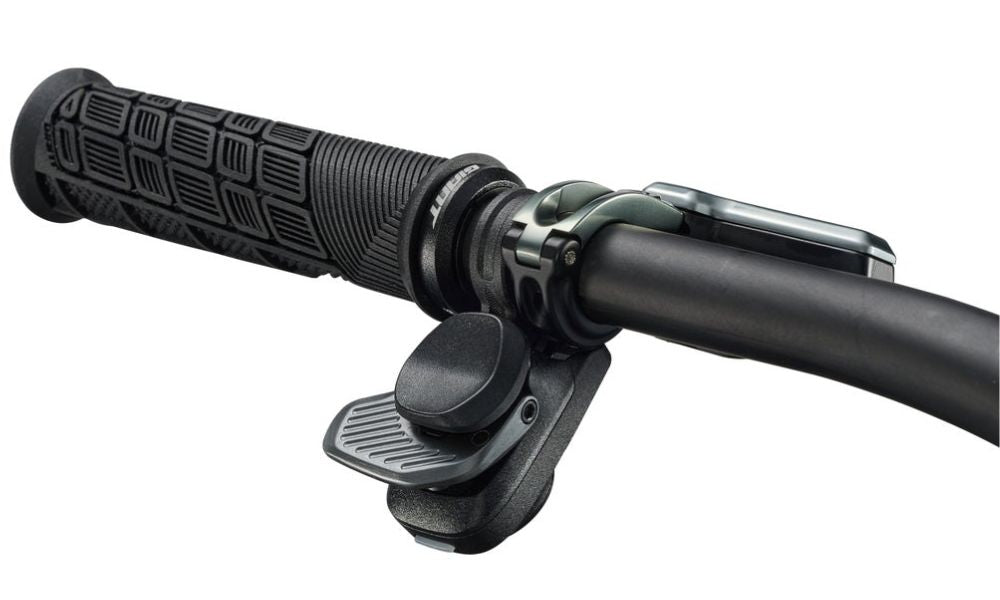

UI/Remote: "Giant RideControl Ergo 5 wireless Integrated E+ System & seatpost remote"

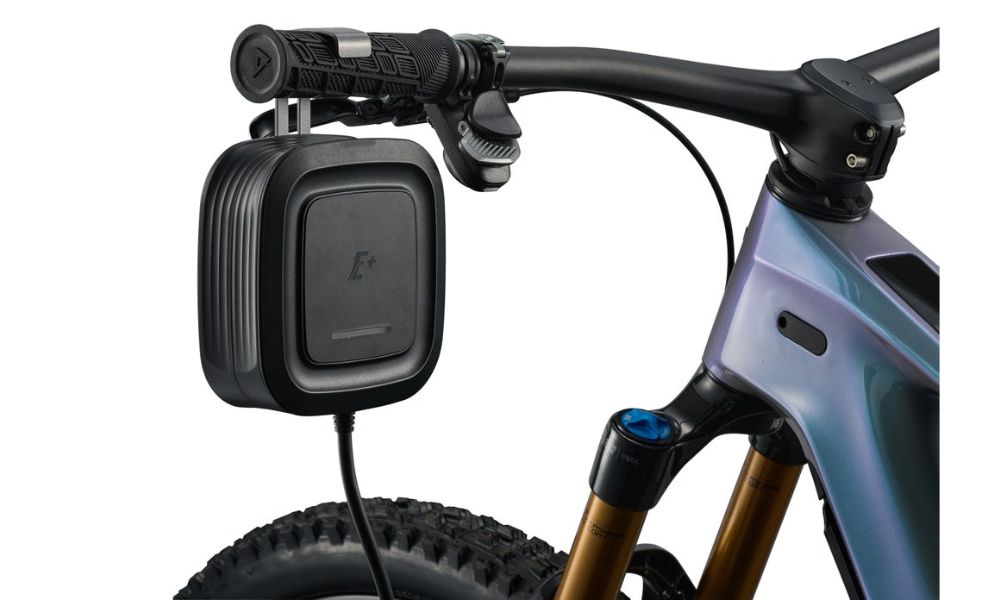

Charger: 48V 4A Smart Charger X
