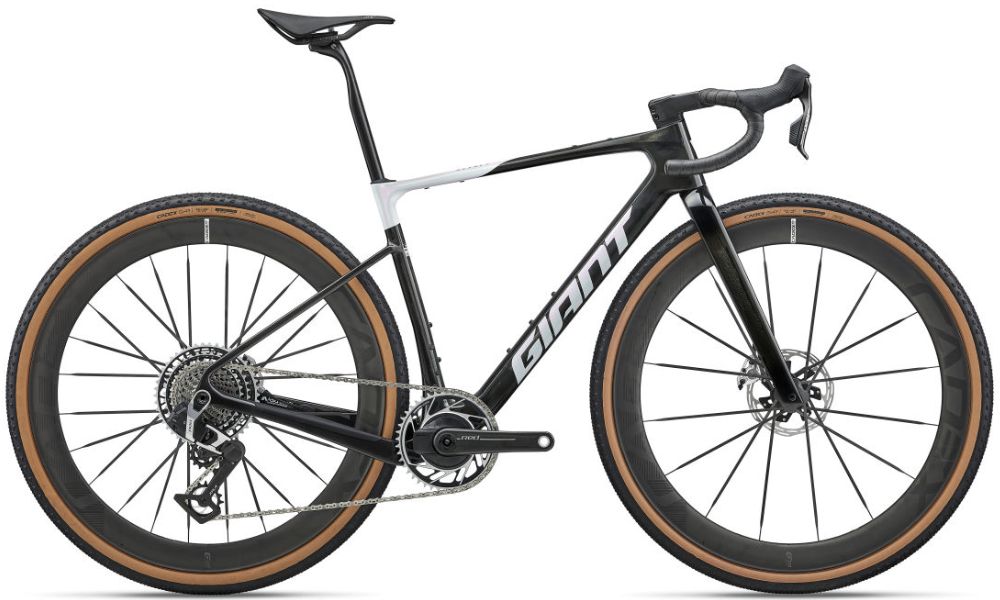

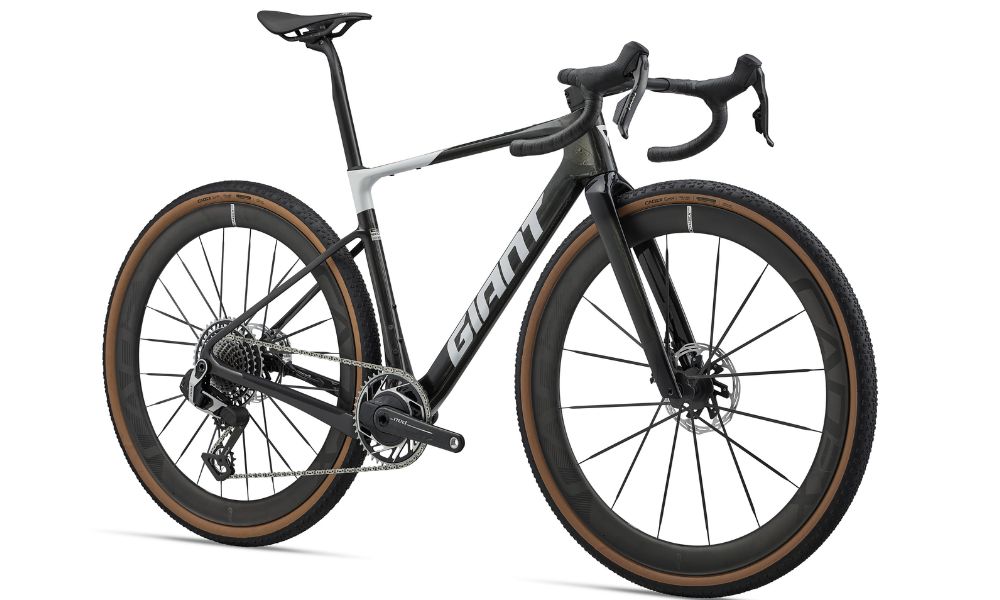

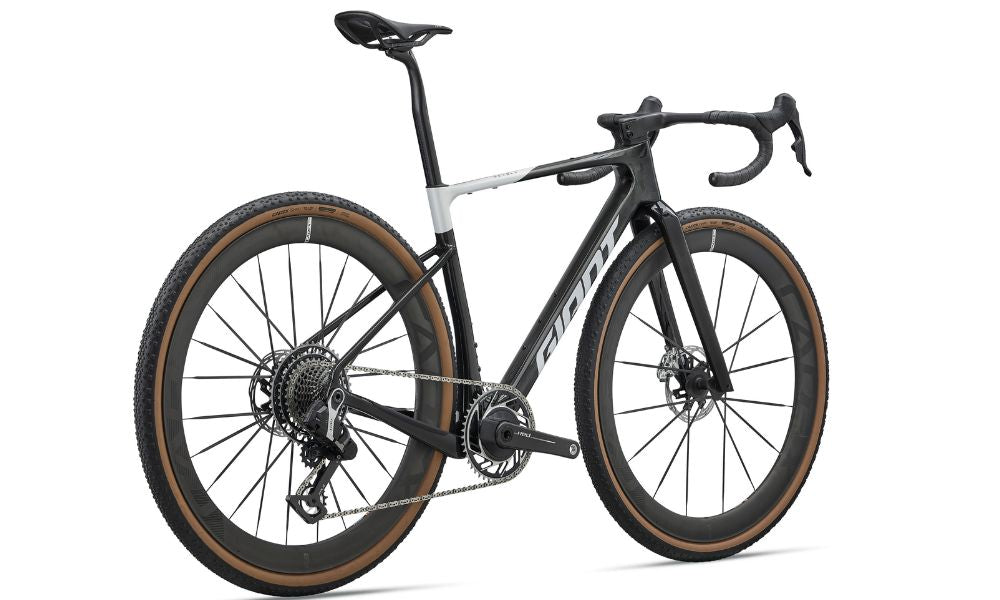

The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.

ULTRALIGHT EFFICIENCYThe new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires add up to a total system weight savings of 288g*. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tires designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Giant 2027 Revolt Advanced SL 0

Frame

Size: S, M, ML, L, and XL
Colour: Raw Carbon/Prism Mist

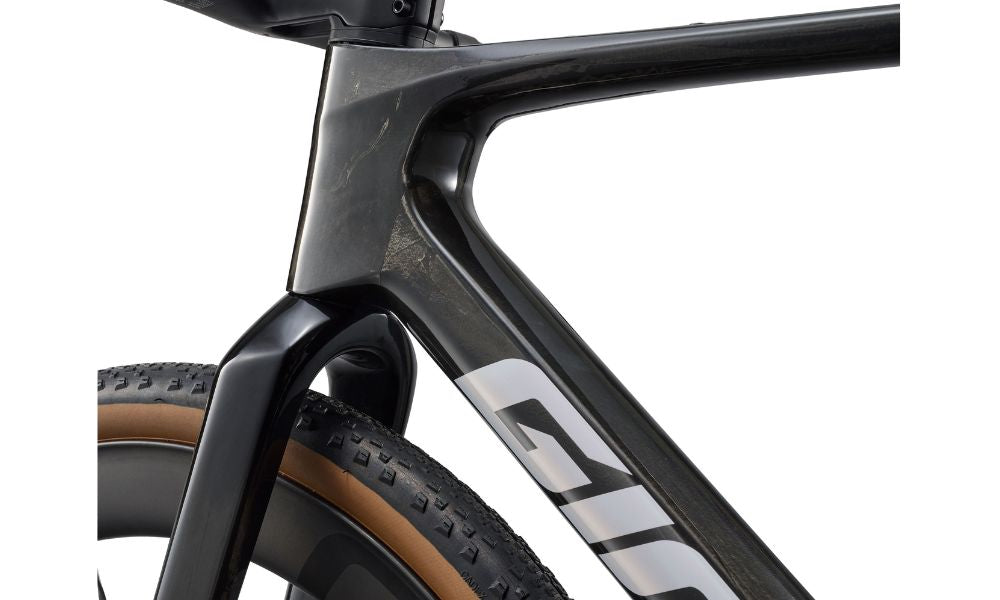

Frame: Advanced-grade Composite, 12x142mm thru-axle, disc
Fork: Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock:

Drivetrain

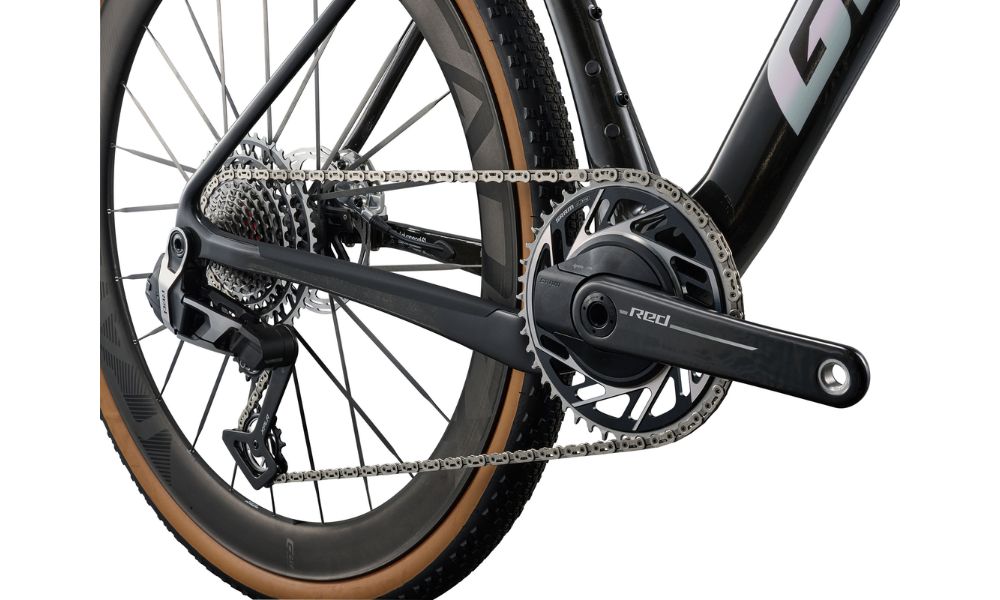

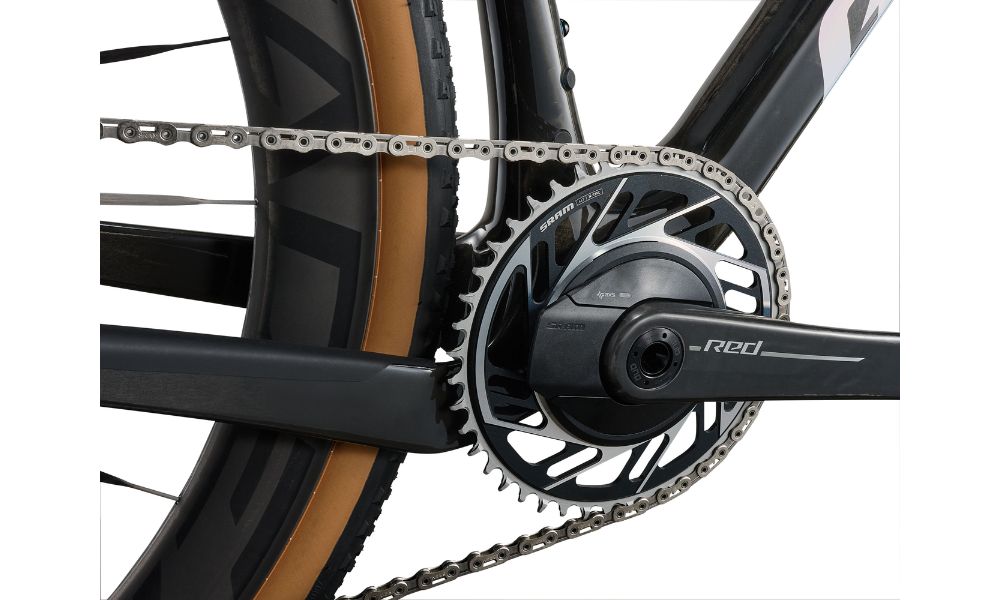

Crankset: SRAM RED XPLR AXS with power meter, 44t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Pedals:
Chain: SRAM RED E1
Bottom Bracket: SRAM DUB, Press Fit

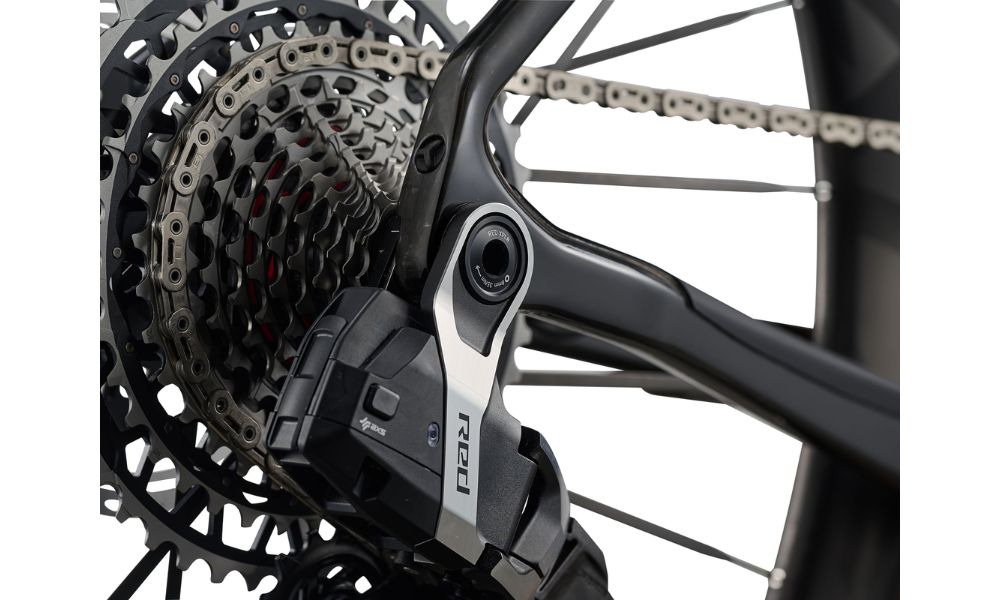

Rear Derailleur: SRAM RED XPLR AXS E1
Front Derailleur:
Derailleur Shifter: SRAM RED XPLR AXS E1, 1x13
Freewheel/Cassette: SRAM RED E1, 13-speed, 10x46

Braking System

Brakes: SRAM RED AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm
Brake Levers: SRAM RED E1 hydraulic

Wheels

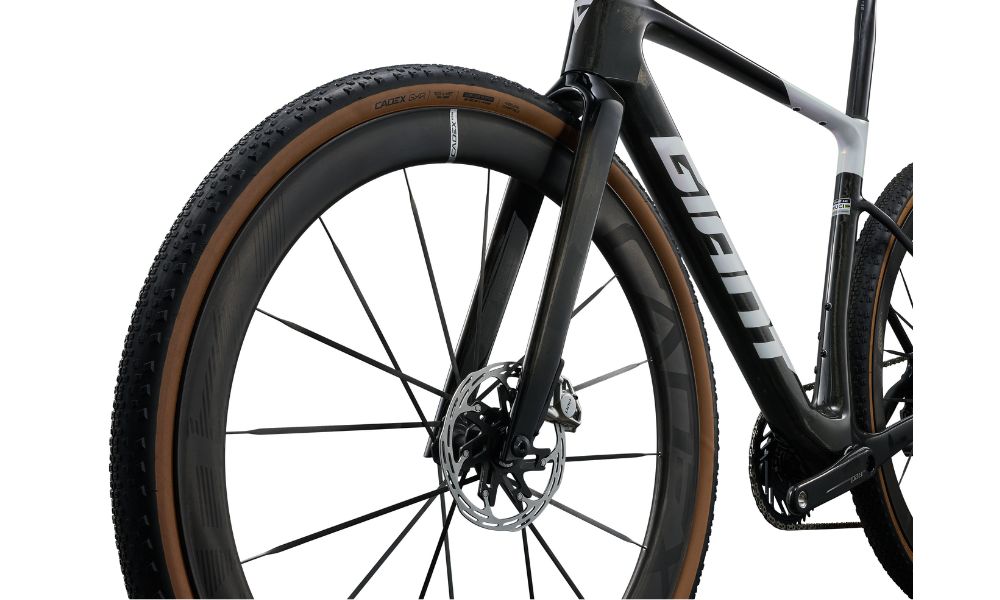

Tyres: CADEX GXR, 700x45c, tubeless
Wheels/Rims: CADEX Max GXR WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
Hubs: [F] CADEX R3, Center Lock, one-piece integrated hub and spokes, [R] CADEX R3-C60, 60-tooth ratchet driver, Center Lock, one-piece integrated hub and spokes

Other

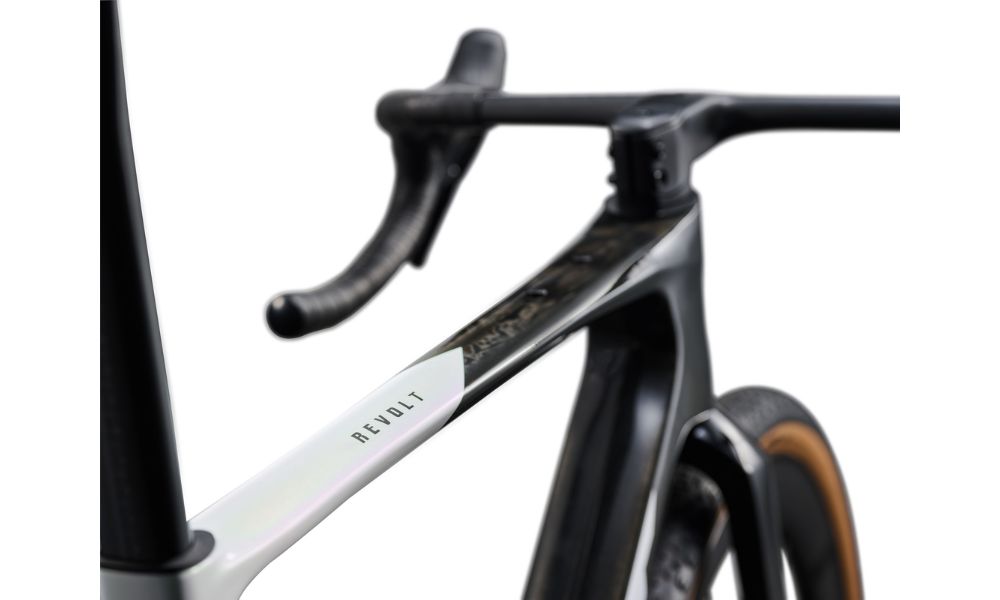

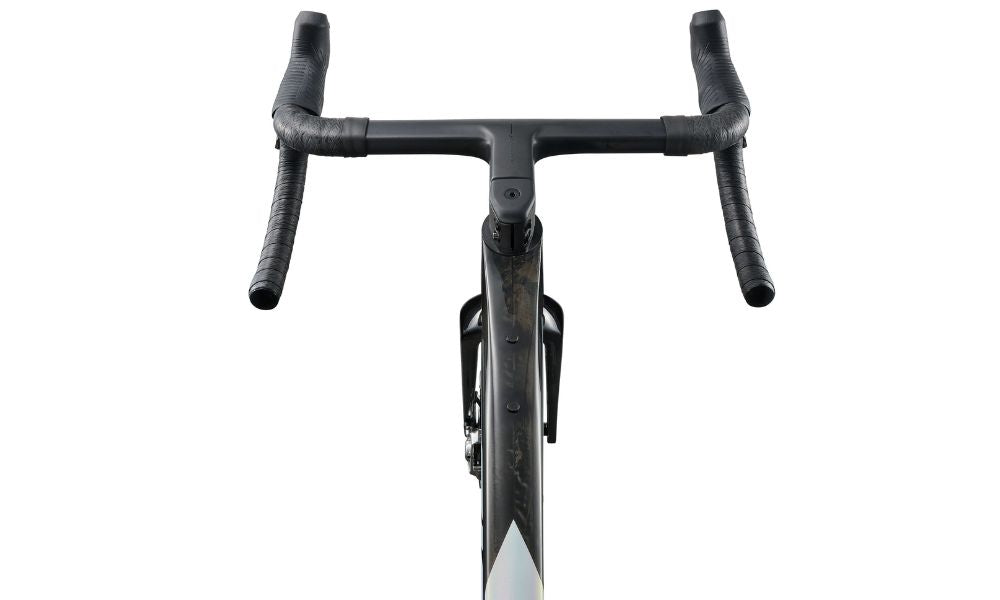

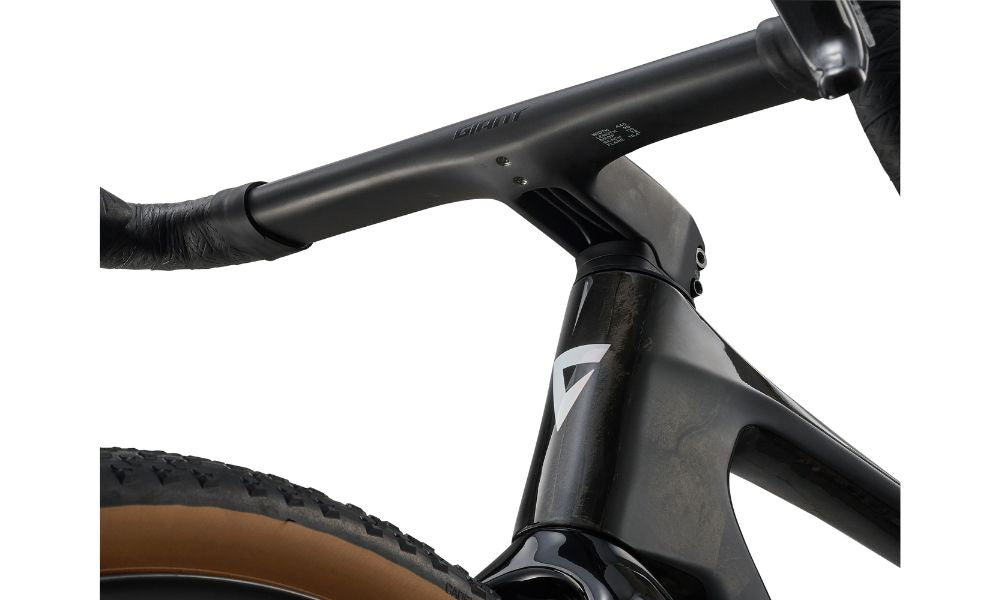

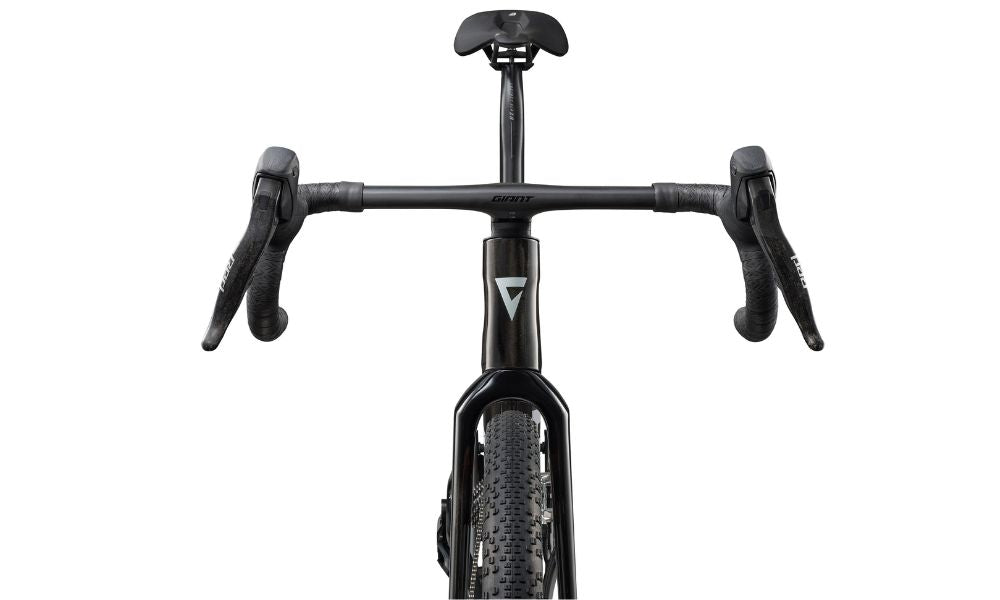

Handlebar: Giant Contact SLR XR Integrated XS:420/380mm, S:420/380mm, M:440/400mm, M/L:440/400mm, L:440/420mm, XL:460/420mm
Stem: Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seat Post: Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle: CADEX Amp
