Description

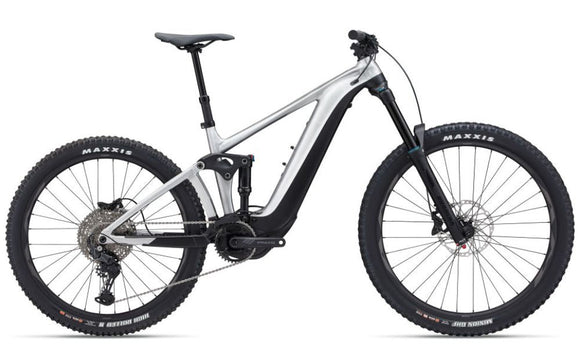

Giant 2024 Reign E+ 3
EVERY TRAIL, EVERY STEEP CLIMB, EVERY THRILLING DESCENT. NOTHING IS OUT OF BOUNDS WITH THE REIGN E+. TESTED AND DEVELOPED BY GIANT’S E-BIKE ENDURO PROS, THIS PROVEN TRAIL RIPPER GIVES YOU THE POWER TO ENJOY THE BEST PARTS OF THE RIDE AGAIN AND AGAIN.
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical tracks.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.
Specifications
Giant 2024 Reign E+ 3
Frame
Colour: Raw AluminiumFrame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork: SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 110x15mm
Shock: Fox Float DPS Performance, EVOL Large Volume sleeve, custom tuned
Drivetrain
Crankset: Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mmPedals:
Chain: Shimano Cues CN-LG500
Bottom Bracket: NA
Rear Derailleur: Shimano CUES, U6000, Shadow+
Front Derailleur: MRP 1X HD2 custom co-moulded chain guide
Derailleur Shifter: Shimano CUES, U6000, Shadow+
Freewheel/Cassette: Shimano Cues CS-LG400-11, 10-50T, 11-speed
Wheels
Tyres: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]Wheels/Rims: Giant GX03V 29 or 27.5, alloy, double wall
Hubs: Shimano MT410 Boost, Center-Lock
Braking System
Brakes: Shimano Deore BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mmBrake Levers: Shimano Deore BL-M4100, I-spec EV
Other
Handlebar: Giant Contact Trail, 35mmStem: Giant Contact SL 35mm S:40mm, M:50mm, L:50mm, XL:60mm
Saddle: Giant
Seat Post: Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 17
E-Bike
Motor: SyncDrive Pro 2, 85Nm, powered by YamahaController: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Charger: EnergyPak 6A smart charger
Geometry
Giant 2024 Reign E+ 3
| S | M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 400 | 425 | 450 | 475 |
| B | SEAT TUBE ANGLE | 76.7° | 76.7° | 76.7° | 76.7° |
| C | TOP TUBE LENGTH (mm) | 569 | 595 | 622 | 649 |
| D | HEAD TUBE LENGTH (mm) | 100 | 100 | 110 | 120 |
| E | HEAD TUBE ANGLE | 63.7° | 63.7° | 63.7° | 63.7° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 135.5 | 135.0 | 135.0 | 135.5 |
| H | WHEELBASE (mm) | 1209 | 1236 | 1265 | 1295 |
| I | CHAIN STAY LENGTH (mm) | 457 | 454 | 454 | 454 |
| J | BOTTOM BRACKET DROP (mm) | 25 | 25 | 25 | 25 |
| K | STACK (mm) | 636 | 635 | 645 | 654 |
| L | REACH (mm) | 425 | 450 | 475 | 500 |
| M | STAND OVER HEIGHT (mm) | 785 | 772 | 771 | 768 |
| N | HANDLEBAR WIDTH (mm) | 800 | 800 | 800 | 800 |
| O | STEM LENGTH (mm) | 40 | 40 | 40 | 50 |
| P | CRANK LENGTH (mm) | 160 | 160 | 165 | 165 |
| Q | WHEEL SIZE | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" |
*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
