Description

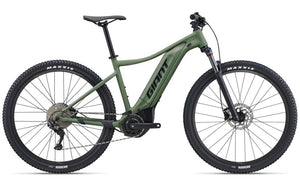

Giant 2023 Talon E+ 1
The trail is calling, and here’s your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.
With a lightweight aluminium frame that blends classic hardtail design with modern E-bike technology, Talon E+ delivers comfort and confidence on off-road terrain. Perfect for bike paths or XC trails, it features a SyncDrive Core motor system that makes those hard climbs easier and encourages you to extend your ride time. It’s designed for a 100mm suspension fork to smooth out the bumps, and its 29-inch wheels give it a stable, balanced ride quality. The side-release EnergyPak 500/400 battery is integrated into the frame and can be easily removed for charging. And the RideControl ONE control lets you adjust settings as you ride.
Smooth power delivery
The SyncDrive Core motor delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.
Balanced, confident handling
Lightweight aluminium frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels puts you in control on off-road terrain.
Long-lasting battery
Side Release EnergyPak with 500Wh or 400Wh of capacity is easy to charge with our 4A smart charger.
Specifications
Giant 2023 Talon E+ 1
Frame
Colour: Shale Green
Frame: ALUXX-Grade aluminium, disc
Fork: SR Suntour XCR 32 Coil LO Boost 29 100mm travel, lockout
Shock: NA
Drivetrain
Crankset: Forged alloy, 36T
Pedals:
Chain: KMC e.10 Sport, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore, 10-speed, Shadow+
Front Derailleur: NA
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano M4100, 11-42T, 10-speed
Drive Unit: SyncDrive Core, 50Nm, Powered by Yamaha
Wheels
Tyres: [F] and [R] Maxxis Rekon 29x2.4"
Wheels/Rims: Giant alloy disc
Hubs: Giant eTracker Sport
Braking System
Brakes: Tektro HDM286, hydraulic disc [F]180mm, [R] 180mm
Brake Levers: Tektro HDM286
Other
Handlebar: Giant Connect TR Riser 31.8mm
Stem: Giant Sport, alloy, 7-degree
Saddle: Giant Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Battery: EnergyPak 500Wh
Charger: EnergyPak 4A fast charger
Display/Control: RideControl Dash, full colour lcd screen
Geometry
Giant 2023 Talon E+ 1
-
- S
-
156 cm
165 cm
-
- M
-
162 cm 172 cm
-
- L
-
169 cm 179 cm
-
- XL
-
183 cm 193 cm
-
- XXL
-
190 cm 200 cm
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 405 | 455 | 505 | 535 | 560 |
| B | SEAT TUBE ANGLE | 73,0° | 73,0° | 73,0° | 73,0° | 73,0° |
| C | TOP TUBE LENGTH (mm) | 575 | 600 | 625 | 650 | 675 |
| D | HEAD TUBE LENGTH (mm) | 105 | 115 | 125 | 140 | 155 |
| E | HEAD TUBE ANGLE | 68,0° | 68,0° | 68,0° | 68,0° | 68,0° |
| F | FORK RAKE (mm) | 46 | 46 | 46 | 46 | 46 |
| G | TRAIL (mm) | 100,7 | 100,7 | 100,7 | 100,7 | 101 |
| H | WHEELBASE (mm) | 1141 | 1167 | 1193 | 1219 | 1245 |
| I | CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 | 475 |
| J | BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 | 45 |
| K | STACK (mm) | 625 | 634 | 643 | 657 | 671 |
| L | REACH (mm) | 384 | 406 | 428 | 449 | 470 |
| M | STAND OVER HEIGHT (mm) | 723 | 753 | 788 | 808 | 828 |
| N | HANDLEBAR WIDTH (mm) | 690 | 750 | 750 | 780 | 780 |
| O | STEM LENGTH (mm) | 50 | 60 | 60 | 70 | 70 |
| P | CRANK LENGTH (mm) | 160 | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" | 29" |
