Liv 2022 STP 26

Liv 2022 STP 26

  • $1,699.00
Tax included.

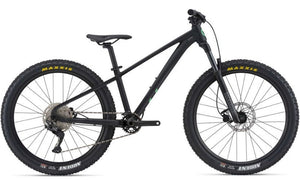

Liv 2022 STP 26

Designed for young riders looking to try out the dirt or pumptrack, this all-new shredder is built on a lightweight, super-strong aluminum frame with quick, responsive 26-inch wheels.

Versatile

Built with a lightweight, strong and durable ALUXX-Grade Aluminum frameset, the bike cruises the pump tracks, trails, and streets with ease.

Quick and Responsive

The frame geometry is designed for 26-inch wheels and a low saddle height, with a taller front end for a responsive, predictable ride quality.

Maximum Control

Powerful disc brakes and a 120 mm suspension fork with a lockout option gives her a safe and confidence-inspiring control.


Liv 2022 STP 26

Frame

Colour: Black
Frame: ALUXX-Grade Aluminium
Fork: "RockShox Recon Silver RL, 15x110mm 120mm, with remote lockout"
Shock: N/A
Weight: N/A

Drivetrain

Crankset: Alloy forged, 30t, Regular 155mm, Large 165mm
Pedals: N/A
Chain: KMC X10
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Deore RD-M5120
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 1x10
Freewheel/Cassette: Shimano CSM-4100, 11x46

Wheels

Tires: Maxxis Ardent, 26x2.25"
Wheels/Rims: Giant 26", alloy
Hubs: Giant Disc, 28h, QR, alloy, disc

Braking System

Brakes: Tektro TDK143, hydraulic [F]160mm, [R]160mm rotors
Brake Levers: Tektro TDK143

Other

Handle Bar: Giant Sport, alloy, 31.8mm
Stem Headset: Forged alloy, 0-degree
Grips: Giant Sole-O
Saddle: Giant Sport
Seat Post: Alloy, two-bolt, 30.9mm

bike diagram with measurements referenced in table that follows

    REGULAR LARGE
A SEAT TUBE LENGTH (mm) 340 390
B SEAT TUBE ANGLE 73.5° 73.5°
C TOP TUBE LENGTH (mm) 545 575
D HEAD TUBE LENGTH (mm) 100 110
E HEAD TUBE ANGLE 67.0° 67.0°
F FORK RAKE (mm) 42 42
G TRAIL (mm) 98.7 98.7
H WHEELBASE (mm) 1086 1117
I CHAIN STAY LENGTH (mm) 435 435
J BOTTOM BRACKET DROP (mm) 30 30
K STACK (mm) 579 588
L REACH (mm) 374 401
O STEM LENGTH (mm) 50 50
P CRANK LENGTH (mm) 155 155
Q WHEEL SIZE 26" 26"
