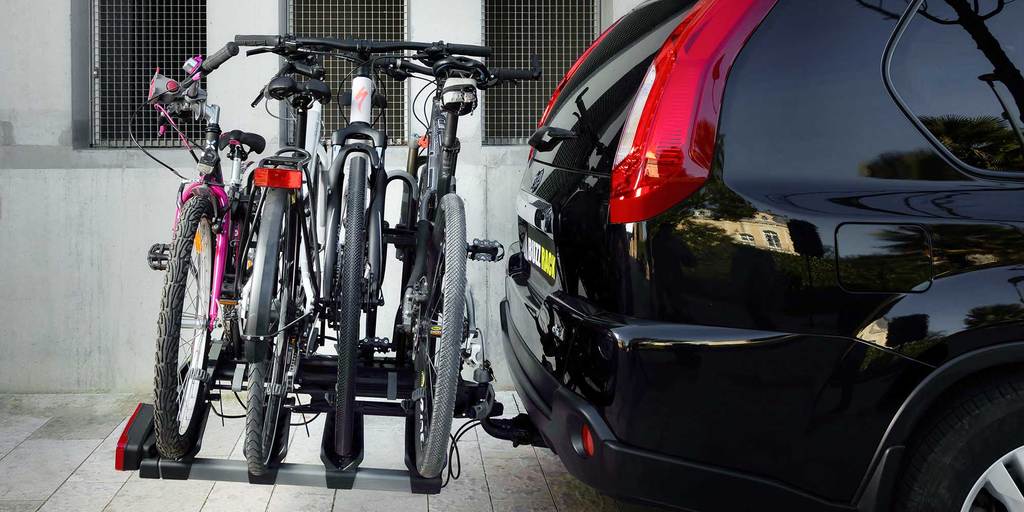

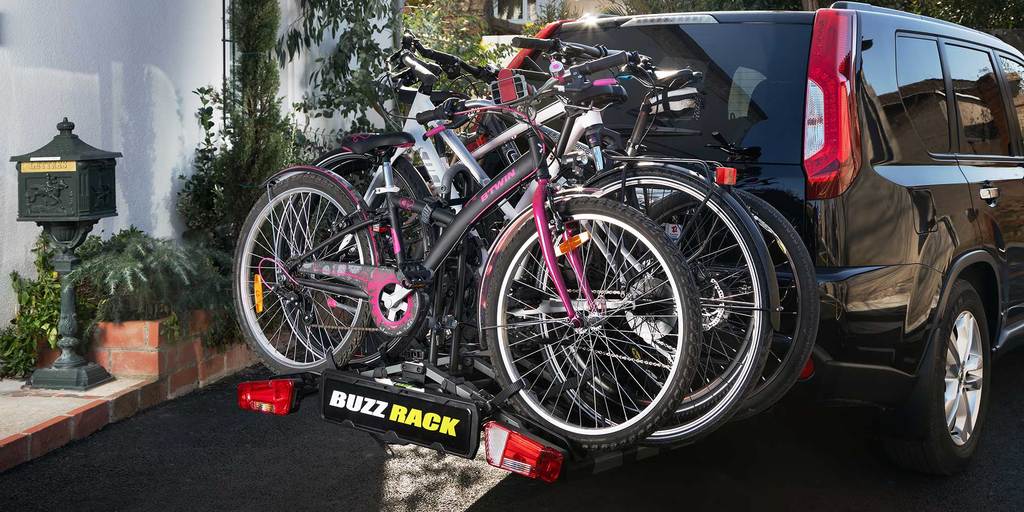

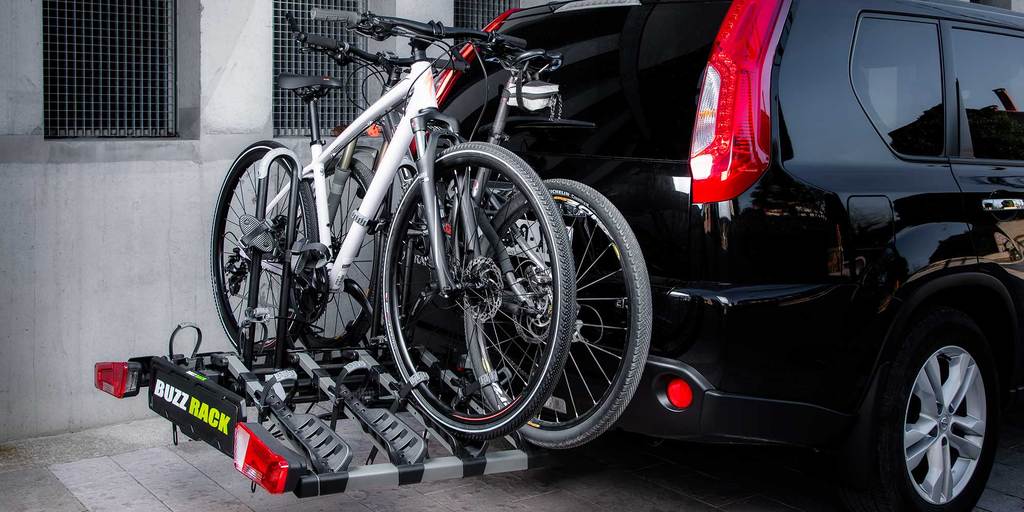

New model deluxe 4 bike platform bike rack.
TILTS, FOLDS, LOCKS, CARRIES 60 KG OF BIKES AND HAS FULL FUNCTION LIGHTS.

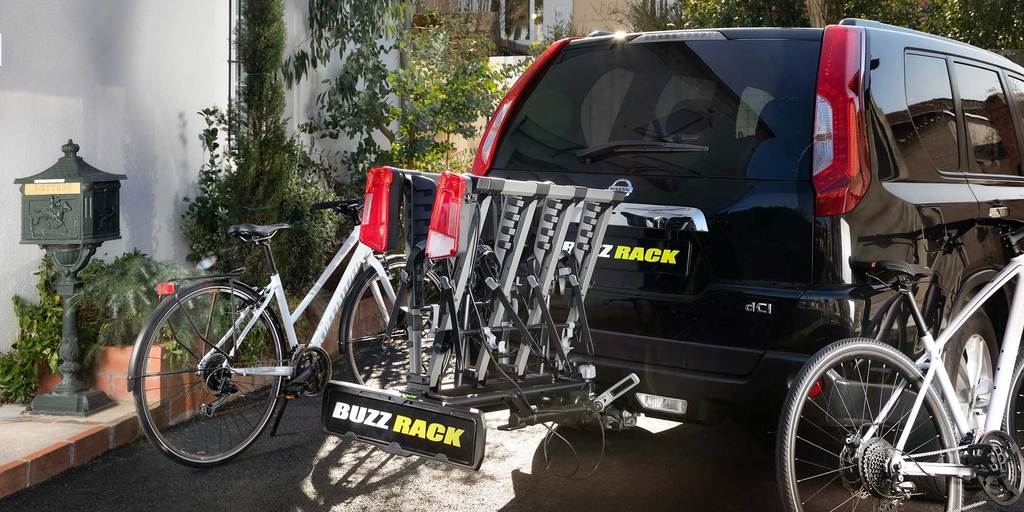

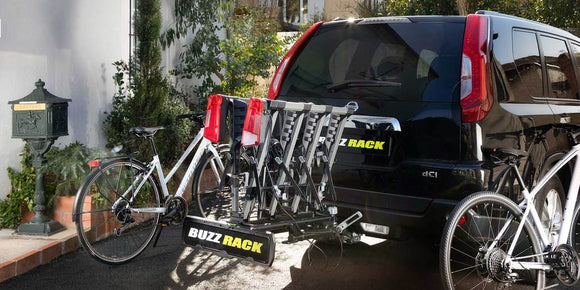

Fully foldable EAZZY series offer convenient mounting, user-friendly functions and compact storage. Deluxe version of the Buzzwing 4 Compact.
The Eazzy 4 is tow-ball mounted bike carrier that carries 4 bikes directly without any add-on kit.
Frame attachment is on the down-frame behind the front wheel. Some bikes with large diameter down tube will not fit this carrier.
- Available in 2, 3 and 4 bike versions.
- Supplied fully assembled except for the lights.
- Easy, convenient, secure and very stable
- The conic clamp fits all 50 mm tow balls.
- Locks the rack to the tow ball.

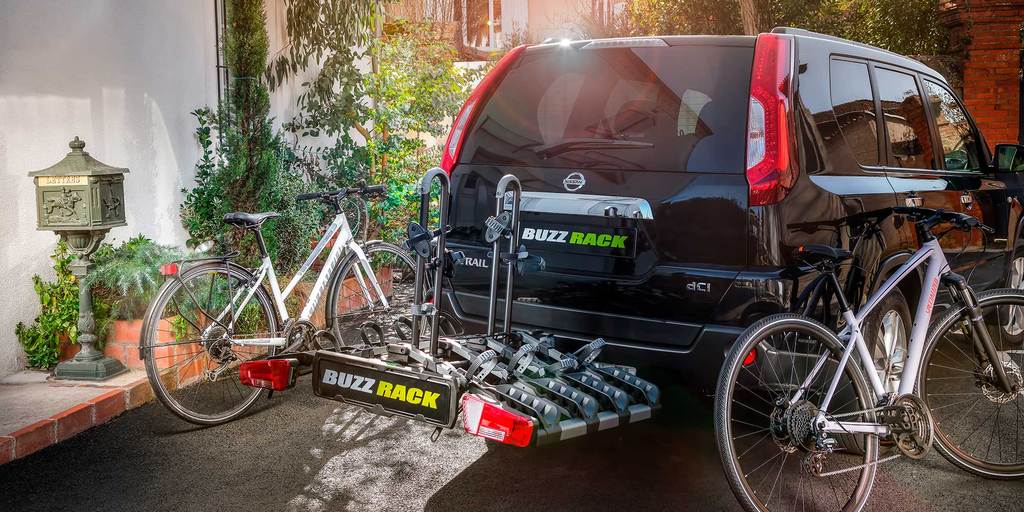

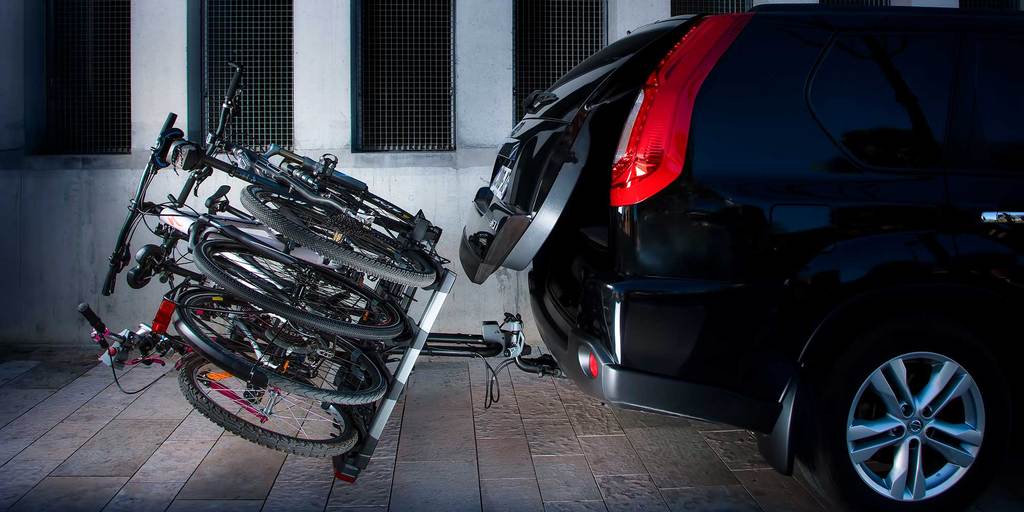

- Easy to tilt for tail door access.
- Well balanced during the tilting phase.
- Tilts with bikes on.
- Padded rotating cradles with ratchet strap
- Wheel holders with quick release ratchet straps and rim padding. Fits up to 4"
- Locking cable included.
This NEW Model looks and performs great and is so easy to use.
TECHNICAL SPECIFICATIONS
Max number of bikes: 4
Max weight per bike: 20 kg
Max load capacity: 60 kg
Fits all ISO 50 mm tow ball
Dimensions (width x depth x height): 117 x 92 x 70 cm
(measured from the centre of the tow ball mount to the outside edge of the number plate holder).
Weight: 19.8 kg
Tilting
Integrated lighting board
Lighting board plug type: 7 pin FLAT
Bike carrier to tow ball lock
Bike carrier to bike cable lock
Eazzy 4 Video
The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
Requires 65mm clearance from centre of tow ball to rear of vehicle.
