Giant 2026 Propel Advanced Pro 0-Di2
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz
This aero rocketship is built for speed when it matters most. It’s lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency that puts you ahead of the pack.
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.
Easier adjustability
All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.
Giant 2026 Propel Advanced Pro 0-Di2
Frame
Size: S, M, ML, L, XL

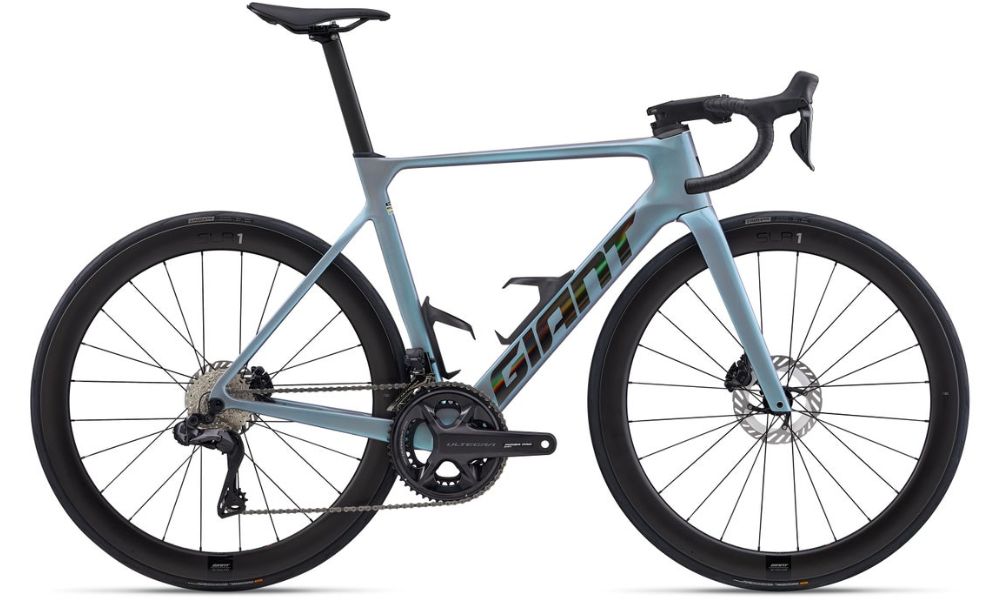

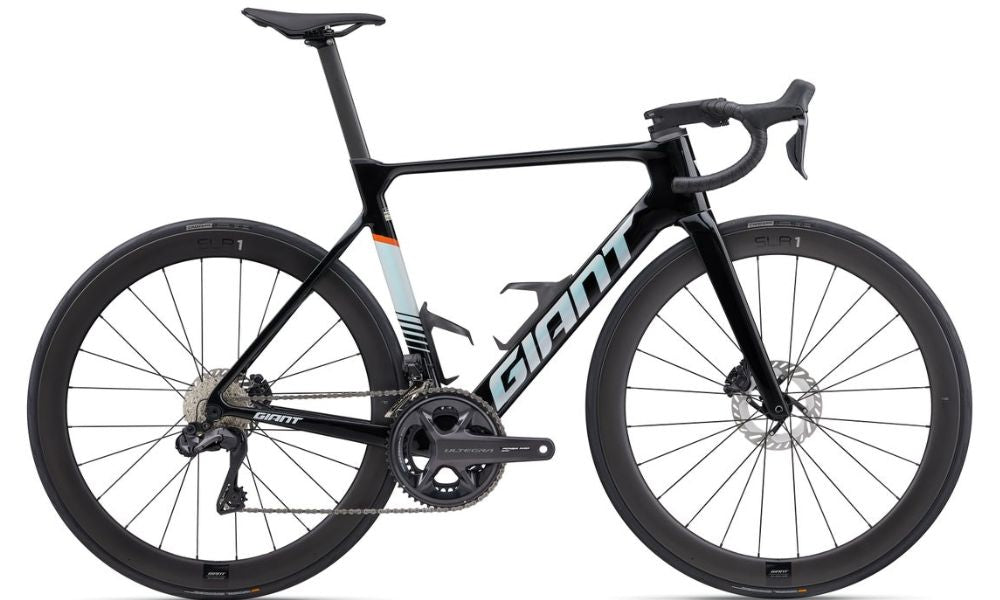

Colour: Abyss Black or Prismatic Haze
Frame: Advanced-Grade Composite, disc
Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
Shock:
Drivetrain
Crankset: Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Pedals:
Chain: Shimano Ultegra, CN-M8100
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Ultegra Di2 RD-R8150
Front Derailleur: Shimano Ultegra Di2 FD-R8150
Derailleur Shifter: Shimano Ultegra Di2 ST-R8170
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x30
Braking System
Brakes: Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers: Shimano Ultegra Di2 hydraulic
Wheels
Tyres: CADEX Race, tubeless, 700x28c (26.5mm), folding
Wheels/Rims: Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Other
Handlebar: Giant Contact SLR Aero XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Stem: Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seat Post: Giant Vector, composite, -5/+15mm offset
Saddle: Giant Fleet SL
Giant 2026 Propel Advanced Pro 0-Di2
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 465 | 500 | 520 | 545 | 575 | 595 |
| B Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G Trail (mm) | 70.5 | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 |
| H Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| K Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M Stand Over Height (mm) | 722 | 753 | 770 | 794 | 821 | 834 |
| O Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
