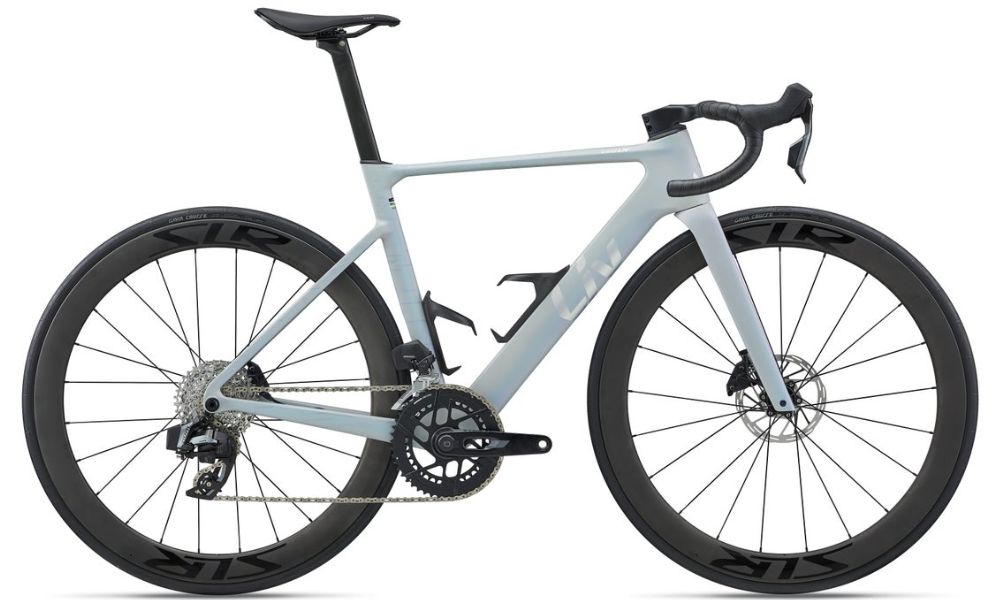

Liv 2027 EnviLiv Advanced Pro 1 AXS
Bikes available to order from Australia. Please contact store for availability and ordering on 04 589 2822 or support@cyclescience.co.nz
For riders in pursuit of elite speed on the race course or club ride, the EnviLiv Advanced Pro delivers WorldTour-inspired aero efficiency. Designed for integrated performance, with refined aerodynamics and a lightweight carbon frameset and WheelSystem, this EnviLiv is ready to chase the light and own the moment.
Race-Tuned Efficiency
The Advanced-grade composite frame is paired with an Advanced SL–grade composite fork to balance low weight with race-tuned stiffness where it matters most. The result is efficient power transfer, precise front-end response, and confident performance through accelerations, climbs, and long efforts at race pace.
System-Integrated Aerodynamics
Refined tube shaping and integrated components—from cockpit to wheels and tires—work together to reduce drag across the entire bike, helping riders hold higher speeds with less effort in real race situations, whether riding solo or deep in the pack.
Composed Control

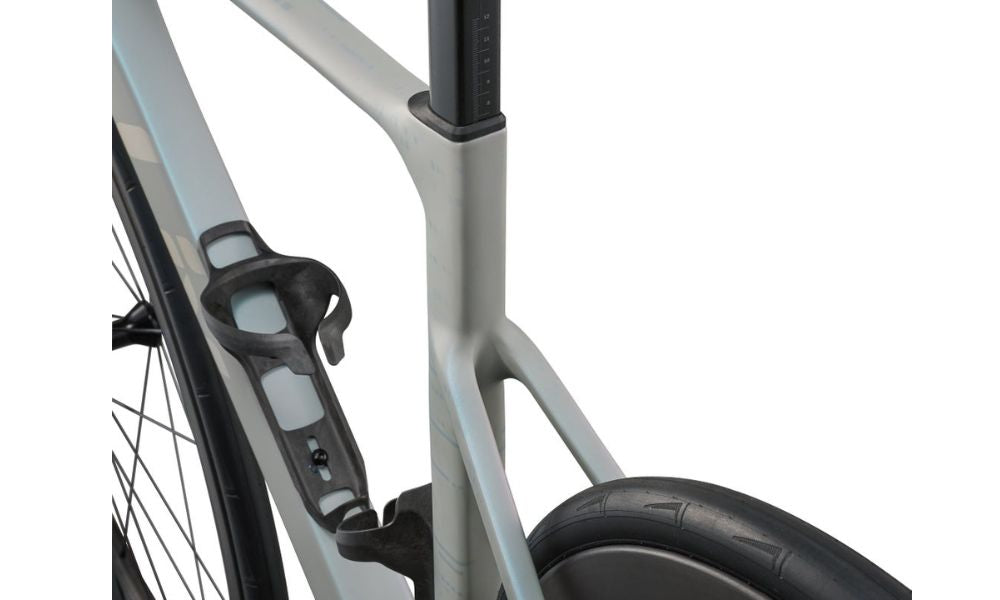

Lowered seatstays add vertical compliance that smooths road vibration and improves aerodynamic efficiency, keeping the bike composed at speed when the road gets rough. With clearance for tires up to 32mm, the EnviLiv Advanced Pro delivers confidence and consistency across changing surfaces and conditions.
Liv 2027 EnviLiv Advanced Pro 1 AXS
Frame
Size: XS, S, M
Colour: Supernova Grey
Frame: Advanced-grade composite, 12x142mm thru-axle, disc
Fork: Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock:

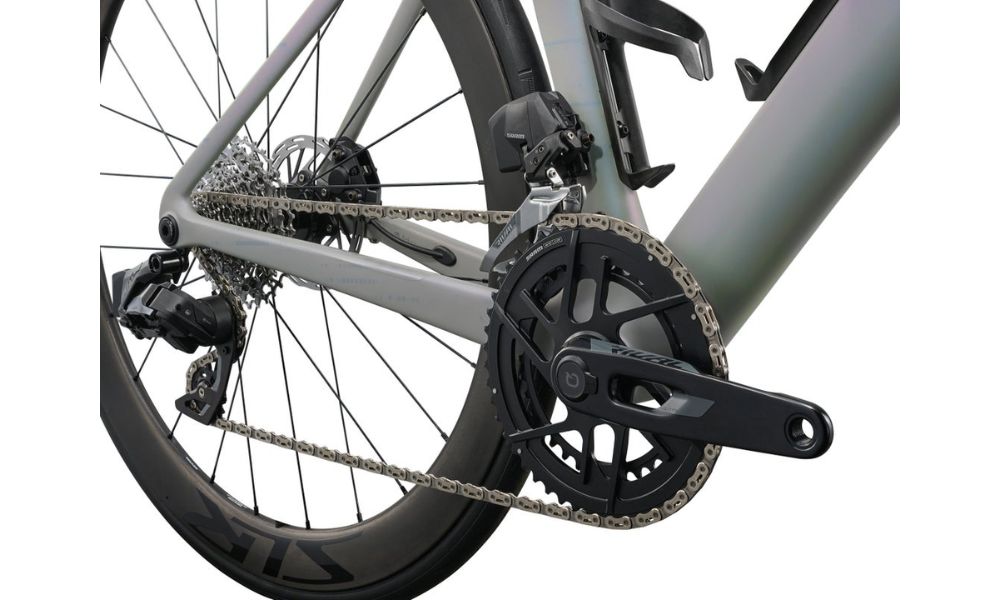

Drivetrain
Crankset: SRAM Rival E1, 35/48 with power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 170mm
Pedals:
Chain: SRAM Rival E1
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM Rival AXS E1
Front Derailleur: SRAM Rival AXS E1
Shifter: SRAM Rival AXS E1
Freewheel/Cassette: SRAM Rival E1, 12-speed, 10x36
Braking System
Brakes: SRAM Rival E1 hydraulic, SRAM PaceLine rotors [F] 160mm, [R] 140mm
Brake Levers: SRAM Rival AXS E1
Wheels
Tyres:
Wheels/Rims: Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
Hubs: [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Other

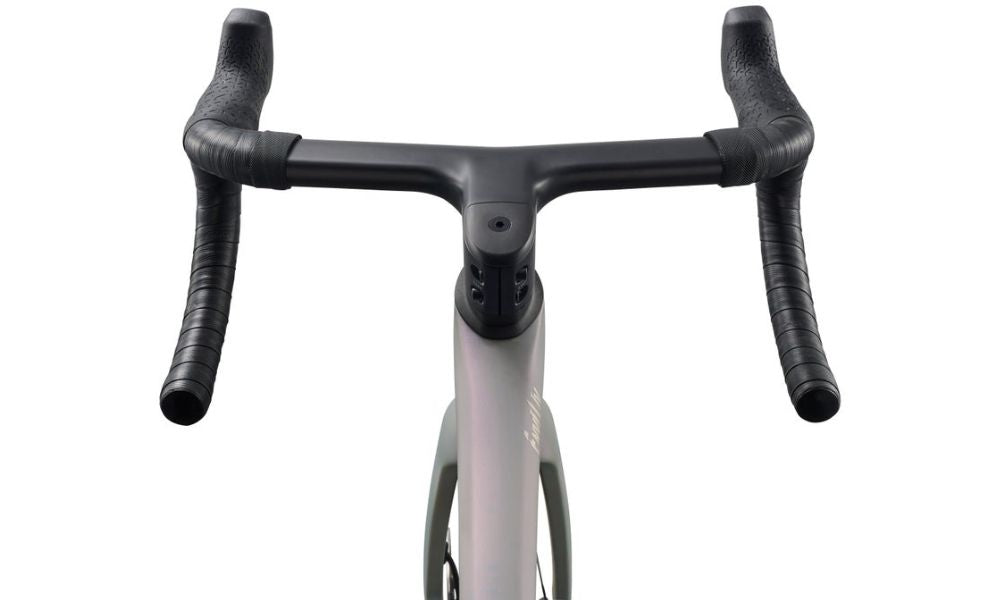

Handlebar: Liv Contact SLR 1 Aero Integrated, 31.8mm, 72mm reach, 125mm drop XXS: 340/360mm, XS: 340/360mm, S: 360/380mm, M: 370/400mm, L: 390/420mm
Stem: Liv Contact SLR 1 Aero Integrated, -10-degree XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
Seat Post: Giant Vector, composite, -5/ +15mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Saddle: Liv Alacra SL
Liv 2027 EnviLiv Advanced Pro 1 AXS
-
- XXS
-
145 cm
157 cm
-
- XS
-
152 cm 163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 176 cm
-
- L
-
170 cm 182 cm
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 446.5 | 465 | 498 | 528 | 558 |
| B Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 73.5° |
| C Top Tube Length (mm) | 504 | 514.8 | 526.2 | 541.2 | 560.6 |
| D Head Tube Length (mm) | 100 | 115 | 130 | 150 | 170 |
| E Head Tube Angle | 70.0° | 71.0° | 72.0° | 72.5° | 72.5° |
| F Fork Rake (mm) | 49 | 49 | 49 | 49 | 49 |
| G Trail (mm) | 73.2 | 66.8 | 60.4 | 57.2 | 57.2 |
| H Wheelbase (mm) | 969.9 | 974.7 | 977 | 984.1 | 999.3 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 73.2 | 66.8 | 60.4 | 57.2 | 57.2 |
| K Stack (mm) | 494.1 | 511.8 | 527 | 547.8 | 566.9 |
| L Reach (mm) | 365.6 | 372.9 | 377.8 | 382.9 | 392.1 |
| M Stand Over Height (mm) | 714.8 | 732.6 | 760.8 | 786.9 | 814 |
| O Stem Length (mm) | 80 | 80 | 90 | 100 | 110 |
| P Crank Length (mm) | 160 | 160 | 165 | 170 | 170 |
*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
