Liv 2024 Intrigue X Advanced E+ Elite 3 - AVAILABLE FOR PRE-ORDER
Description

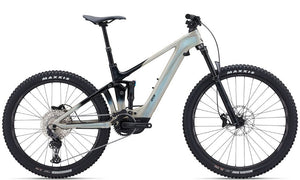

Liv 2024 Intrigue X Advanced E+ Elite 3
Pre-order now, bikes arriving end of June
Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
Specifications
Liv 2024 Intrigue X Advanced E+ 3 Elite
Frame
Colour: Shoreline
Frame: Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork: Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
Drivetrain
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set XS:160mm, S: 160mm, M: 165mm, L:165mm
Pedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore, 12-speed, Shadow+
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano HG-M6100-12, 10-51T, 12-speed
Braking System
Brakes: Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers: Shimano Deore, I-spec EV
Wheels
Tyres: [F] Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Wheels/Rims: Giant AM, alloy 29"[F], 27.5" [R]
Hubs: [F] Shimano MT410 Boost 20x110, Sealed Bearing [R] Shimano MT410 Boost 12x148, Sealed Bearing, HG
Other
Handlebar: Giant Contact 35 Trail, 35mm
Stem: Giant Contact SL 35
Saddle: Liv Sylvia E+
Seat Post: TranzX travel-adjustable dropper, remote XS: 90-125mm travel / 30.9 x 409mm S: 90-125mm travel / 30.9 x 409mm M: 140-170mm travel / 30.9 x 459mm
E-Bike
Drive Unit: SyncDrive Pro2, 85Nm, powered by Yamaha
Battery: EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Controller: RideControl Ergo 3, grip integrated
Charger: EnergyPak 4A smart charger compact
Geometry
Liv 2024 Intrigue X Advanced E+ 3 Elite
-
- XS
-
152 cm
163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 175 cm
-
- L
-
170 cm 181 cm
| XS | S | M | L | ||
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (MM) | 380 | 400 | 425 | 450 |
| B | Seat Tube Angle | 77.2° | 77.2° | 76.0° | 76.0° |
| C | Top Tube Length (MM) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
| D | Head Tube Length (MM) | 95 | 95 | 100 | 115 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (MM) | 44 | 44 | 44 | 44 |
| G | Trail (MM) | 113.1 | 108.0 | 113.1 | 108.0 | 113.1 | 108.0 | 113.1 | 108.0 |
| H | Wheelbase (MM) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
| I | Chain Stay Length (MM) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | Bottom Bracket Drop (MM) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | Stack (MM) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
| L | Reach (MM) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
| M | Stand Over Height (MM) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
| O | Stem Length (MM) | 40 | 40 | 40 | 50 |
| P | Crank Length (MM) | 160 | 160 | 165 | 165 |
| Q | Wheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
