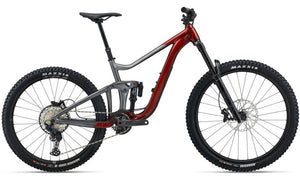

Giant 2025 Reign 1
Giant 2025 Reign 1
Frame
Colour: Mars Dust
Frame: ALUXX SL-Grade Aluminium front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork: Fox 38 Performance Elite, 170mm, GRIP X2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float X Performance Elite, 2 position, custom tuned for Giant
Drivetrain
Crankset: Shimano MT512, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Pedals: NA
Chain: KMC X-12
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano SLX RD-M7100 Shadow +
Front Derailleur: NA
Derailleur Shifter: Shimano SLX SL-M7100, 1x12
Freewheel/Cassette: Shimano SLX SL-M7100, 1x12
Wheels
Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , DD, TR tubeless
Wheels/Rims: Giant TRA Hookless Tubeless ready Alloy Fr: 29"", Rr: 27.5"" 30mm inner width
Hubs: Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Braking System
Brakes: Shimano Deore BR-M6120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
Brake Levers: Shimano Deore BL-M6100
Other
Handlebar: Giant Contact TR35, alloy, 35mm
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Saddle: Giant Romero
Seat Post: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Giant 2025 Reign 1
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 400 | 425 | 450 | 475 |
| B | SEAT TUBE ANGLE | 78.3° | 78.3° | 77.3° | 77.3° |
| C | TOP TUBE LENGTH (mm) | 556 | 587 | 620 | 652 |
| D | HEAD TUBE LENGTH (mm) | 100 | 105 | 115 | 120 |
| E | HEAD TUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 140.0 | 140.0 | 140.0 | 140.0 |
| H | WHEELBASE (mm) | 1214 | 1246 | 1271 | 1304 |
| I | CHAIN STAY LENGTH (mm) | 445 | 445 | 445 | 445 |
| J | BOTTOM BRACKET DROP (mm) | 35 | 35 | 35 | 35 |
| K | STACK (mm) | 627 | 632 | 641 | 645 |
| L | REACH (mm) | 426 | 456 | 476 | 506 |
| M | STAND OVER HEIGHT (mm) | 723 | 743 | 756 | 771 |
| O | STEM LENGTH (mm) | 40 | 40 | 40 | 40 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
